KG5147V-DC Stainless Steel Sensor Faucet with Temperature Control
The Kopfgescheit KG5147V-DC is a touchless basin faucet with user-adjustable water temperature and a durable SUS304 stainless steel body. Its infrared sensor starts water flow when hands enter the detection area.
- Temperature adjustment via a ceramic cartridge
- Maximum flow rate of 6 l/min
- Built-in 100 µm filter and non-return valves
- Power from four AA batteries or a USB supply
- Stainless steel bellows hoses included
Where to buy: Available from Kopfgescheit dealers and on pigu.lt.
Touchless operation with adjustable temperature

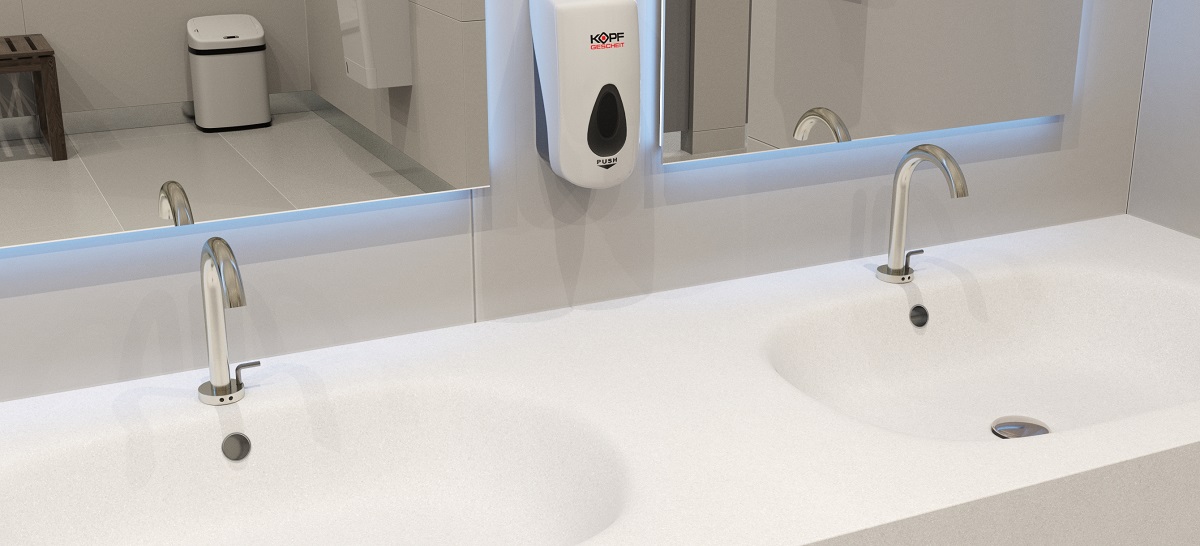

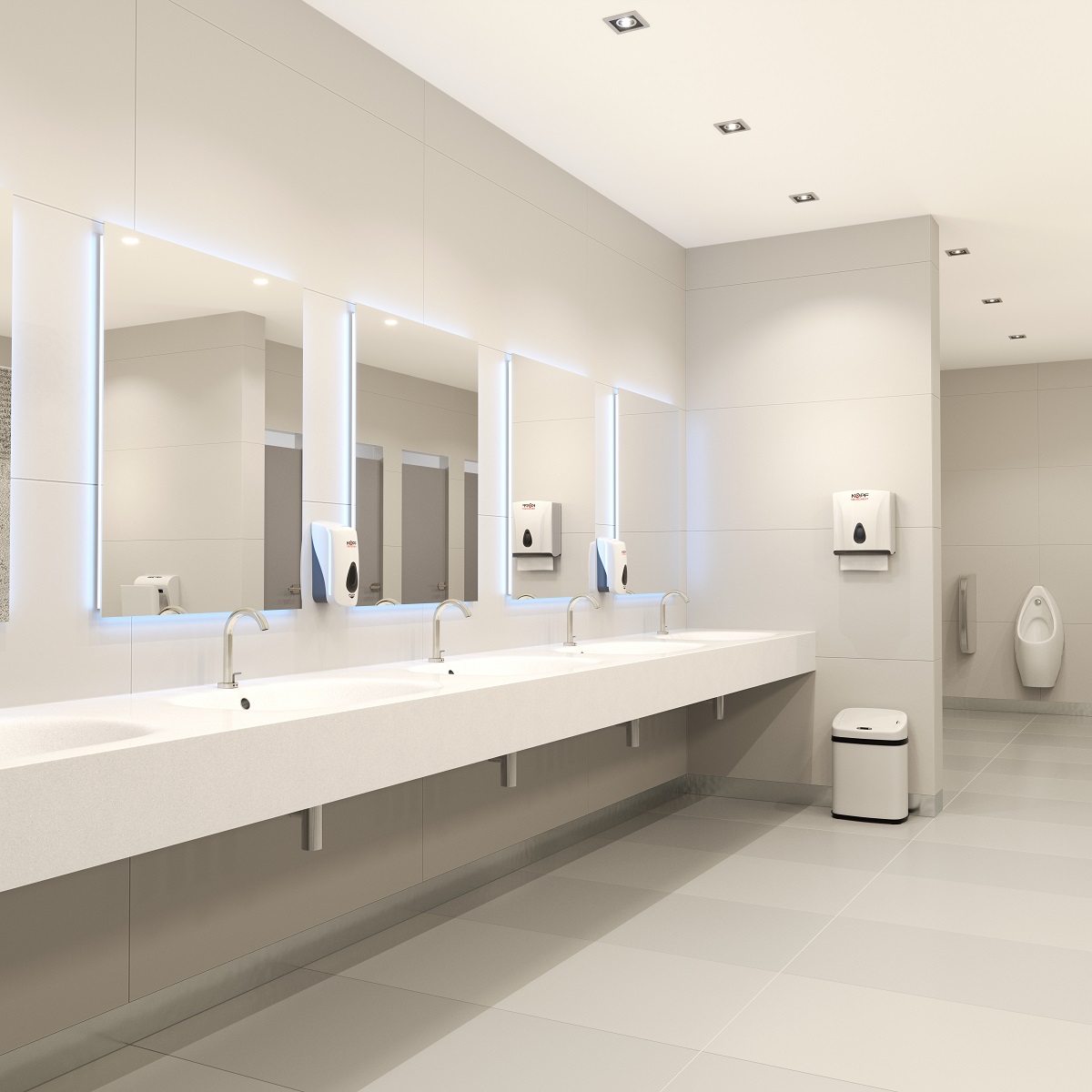

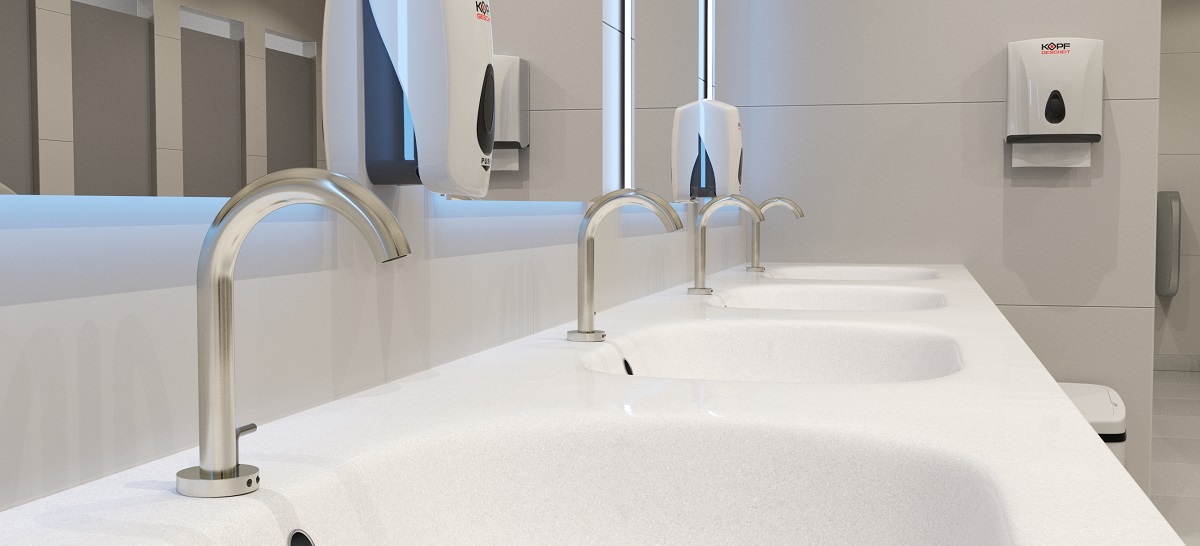

The Kopfgescheit KG5147V-DC sensor faucet is designed for domestic bathrooms and commercial washrooms. A fixed spout, stainless steel body and infrared control provide convenient hand washing without touching the tap to start the water flow. The user sets the hot and cold water mixture with the temperature lever.
Water control and maintenance
A built-in flow limiter restricts consumption to a maximum of 6 litres per minute. The brass solenoid valve incorporates a 100 µm filter and flow adjustment, while non-return valves protect the hot and cold inlets. EasyCare access simplifies filter and valve servicing. Stainless steel bellows hoses are included.
Sensor and power options
The digital infrared sensor calibrates automatically when power is first connected. The optional KG000 RC remote control allows further sensor adjustment. The faucet operates from four AA batteries (not included) or a compatible USB power supply; the USB cable is included.
A safety timer stops continuous flow after 60 seconds. After more than a day without use, an automatic cycle replenishes the basin trap. A low-battery indicator helps plan maintenance.
- Purpose - sink faucet
- Type of faucet - sensor
- Surface finish - metallic
- Body material - stainless steel SUS304
- Spout shape - traditional
- Swivel spout - none
- Shut-off valve - solenoid valve
- Power supply - DC6B (4*AA batteries) (internal) AC 220V or AC/DC 12V (external)
- Aerator - yes

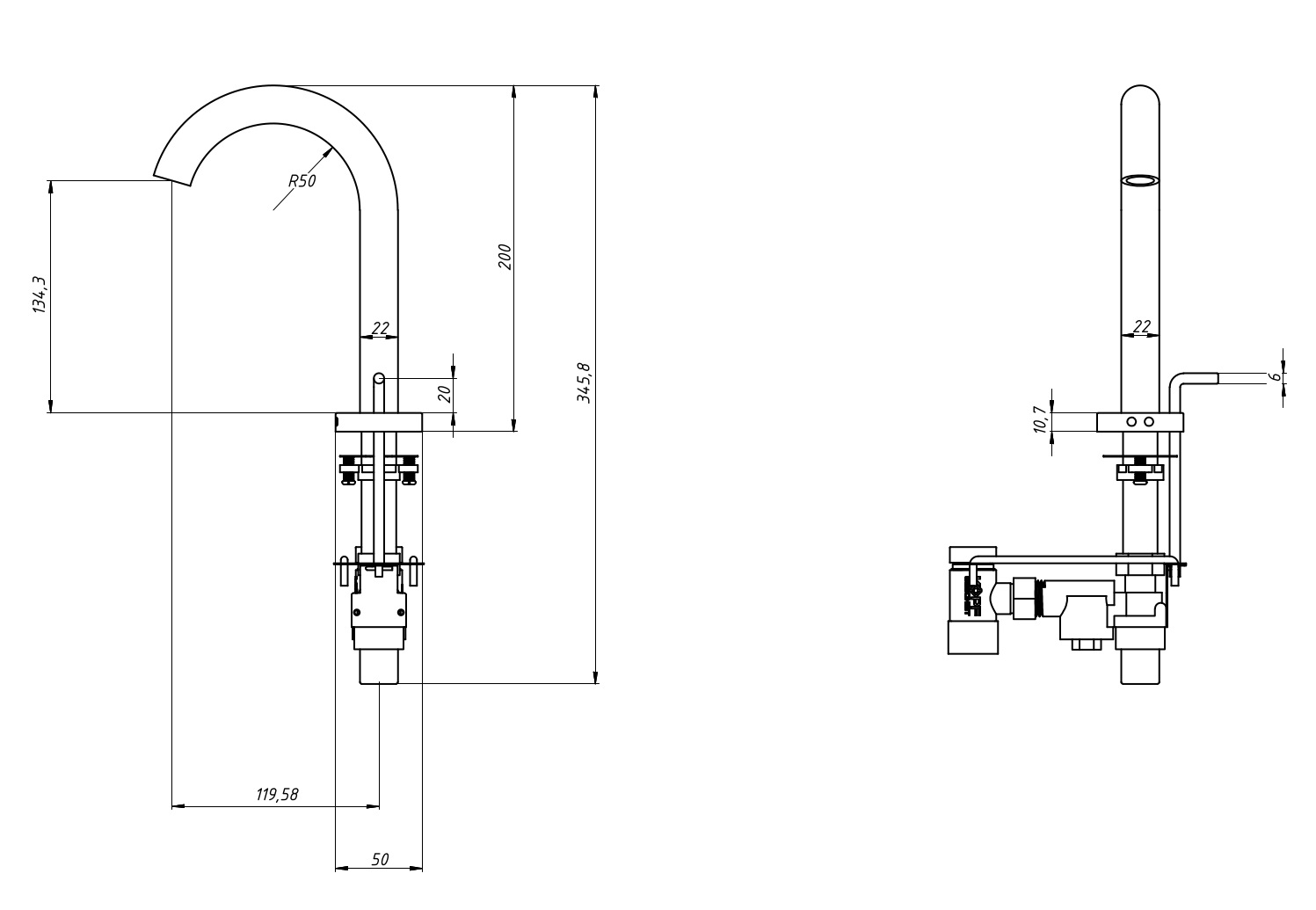

- Spout length - 120 mm
- Spout height - 134 mm
- Height of faucet - 200 mm
- Installation type - basin-mounted
- Faucet connection - flexible
- Fitting size - 1/2 inch
- Fitting type - nut
- Net weight - 1,5 kg
- Number of mounting holes - 1

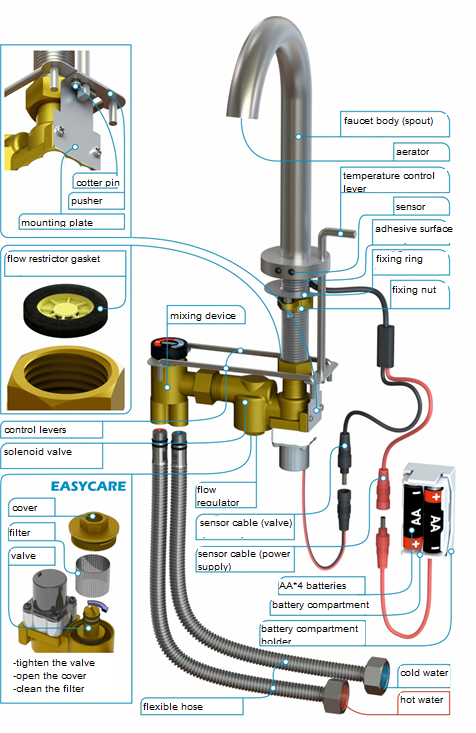

- Spout assembly with sensor (faucet) - 1 pc.
- Mixer complete with flexible inlet and non-return valves - 1 pc.
- Mixer control kit - 1 pc.
- Solenoid valve with EasyCare function and integrated fine filter - 1 pc.
- Battery compartment with battery holder - 1 pc.
- Silicone gasket with fixing washer - 1 pc.
- Fixing nut - 1 pc.
- Fixing kit for battery compartment holder - 1pc.
- USB cable - 1 pc.
- Removable key for aerator - 1 pc.
- Flow restrictor gasket for 6 l/min (1/2") - 1 pc.
- Product certificate with warranty card - 1 pc.
- Sticker "Works automatically" - 1 pc.
-
Manual KG5147V-DC Englishpdf. 475.03KB Download
