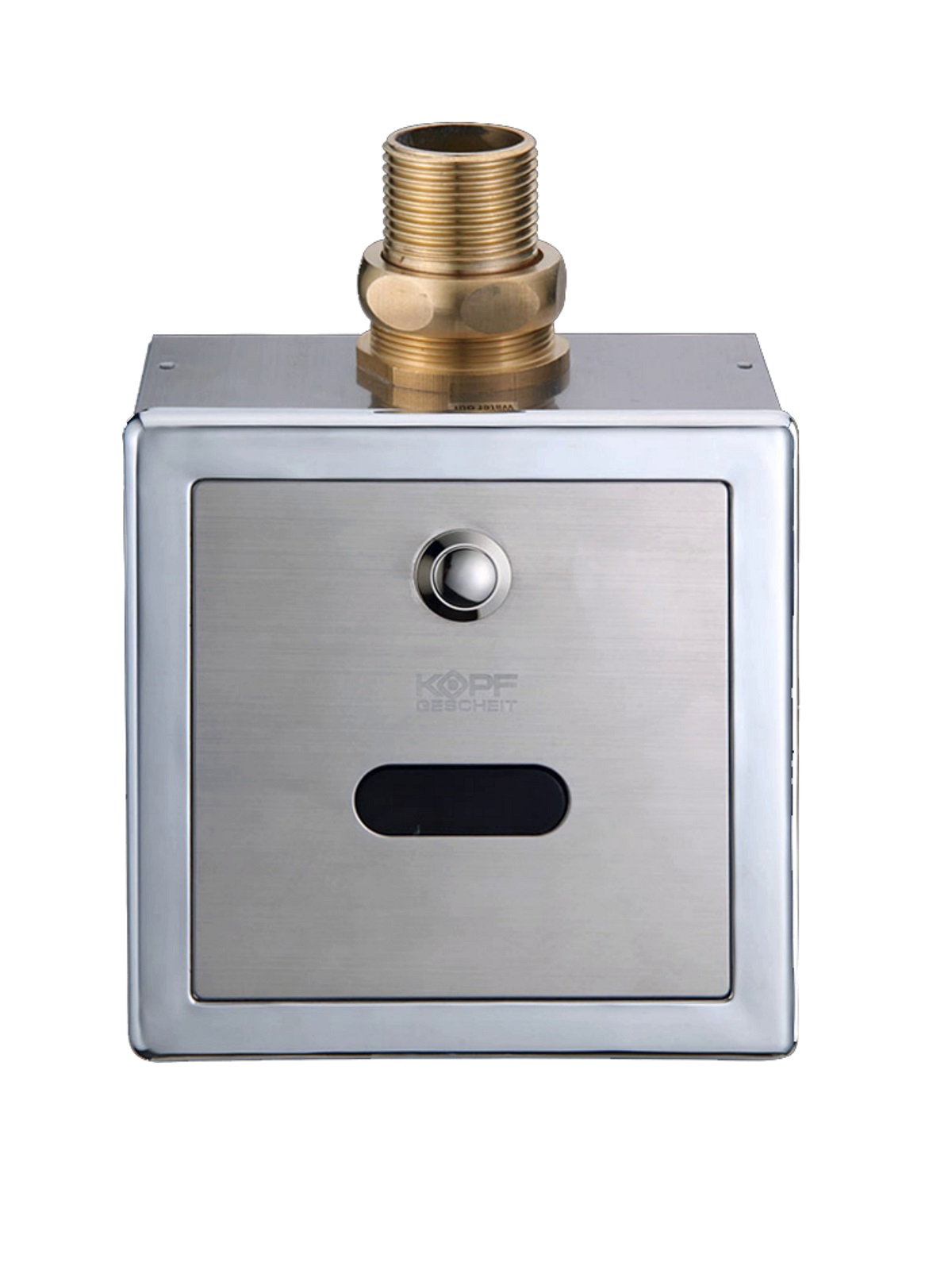

KG7431 Concealed Automatic Flush Unit for Tankless Toilets
The Kopfgescheit KG7431 provides automatic flushing for compatible tankless toilets. Its concealed wall installation and SUS304 stainless steel front panel suit commercial washrooms where durability and touch-free operation matter.
Automatic flushing without a cistern
The KG7431 detects a user within approximately 40–70 cm. After a presence of more than eight seconds, it performs one flush about two seconds after the user leaves. A manual flush option is also provided.
Serviceable concealed design

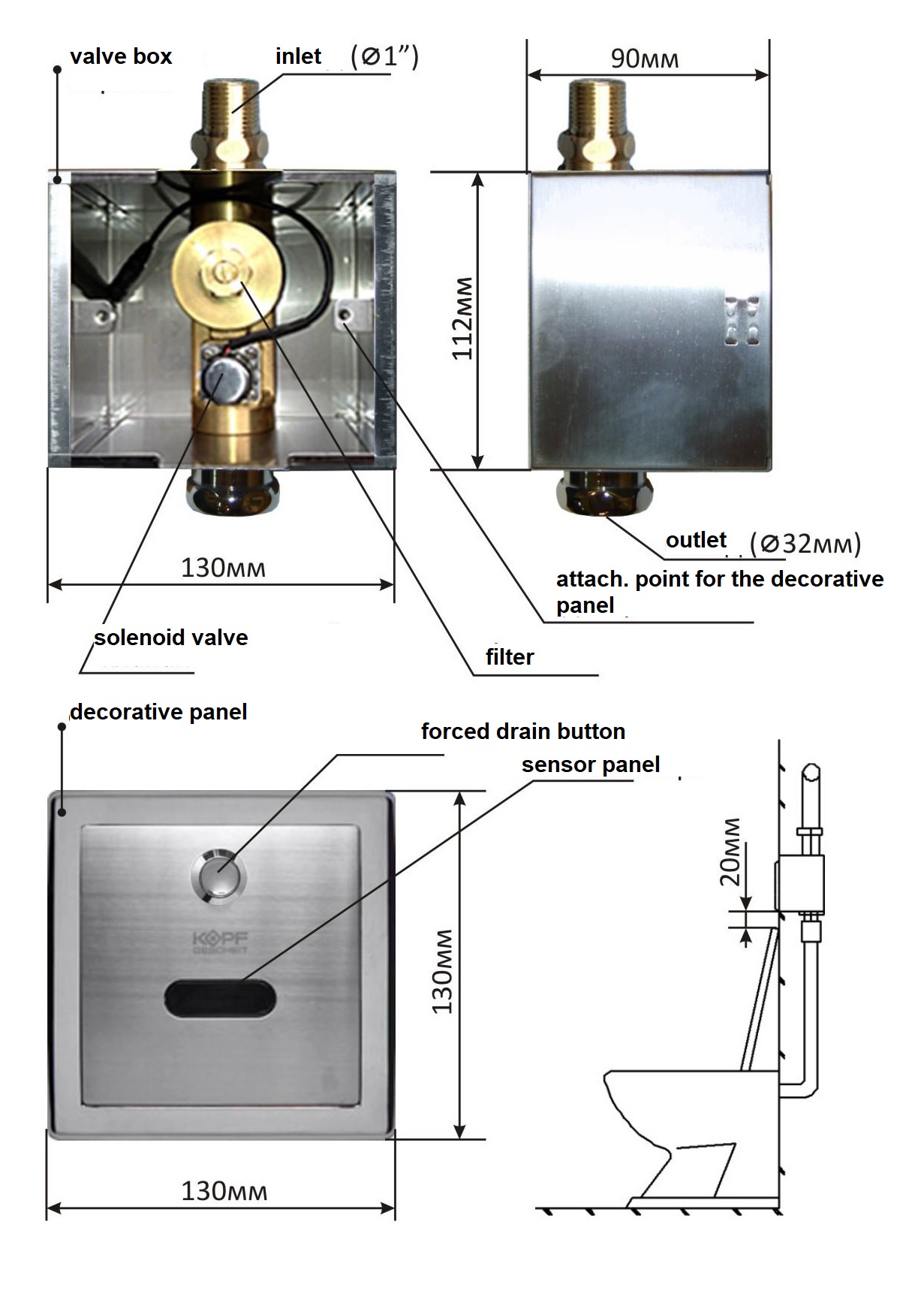

The brass solenoid valve incorporates a water filter and flow regulator. Removing the decorative panel gives maintenance staff access for filter cleaning and flow adjustment. The sensor configures automatically and can also be adjusted with the optional KG000 RC remote.
- Front panel: SUS304 stainless steel

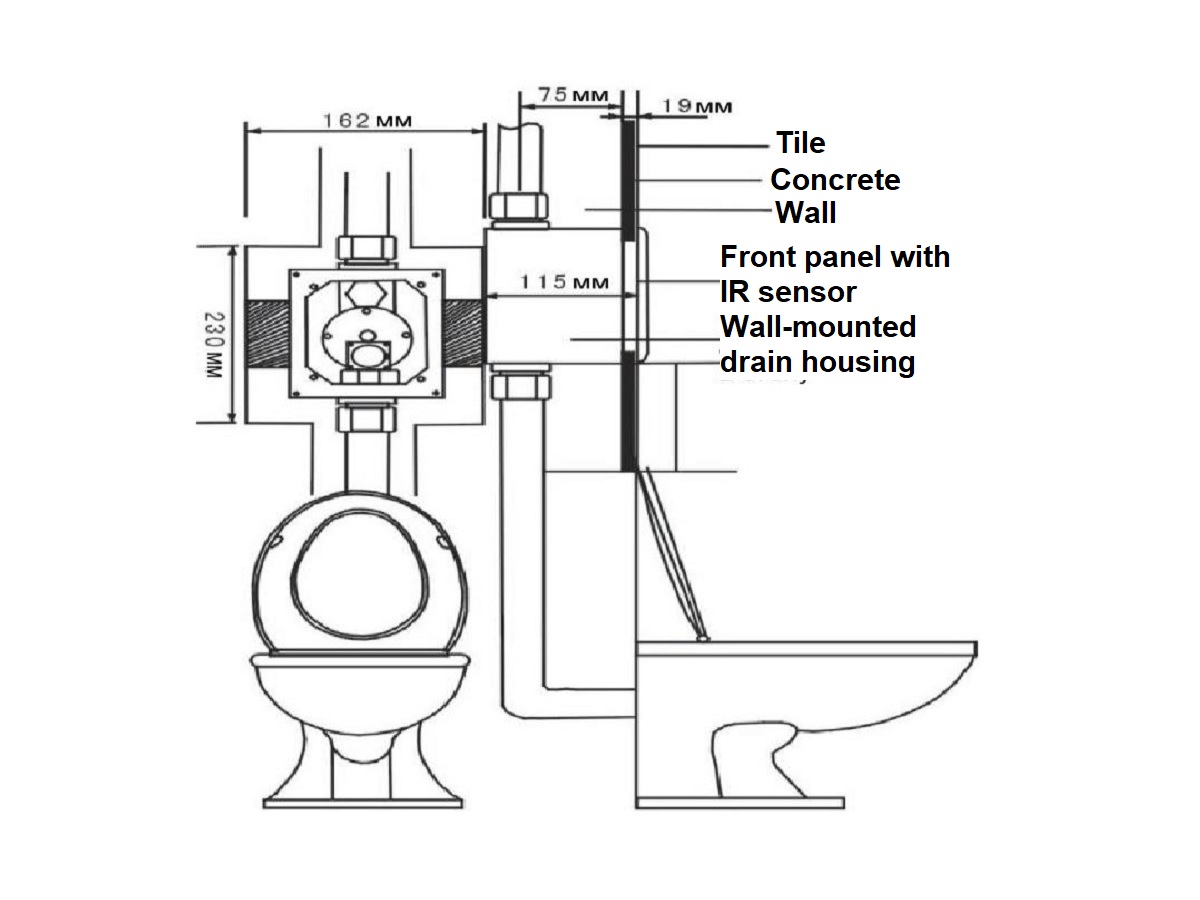

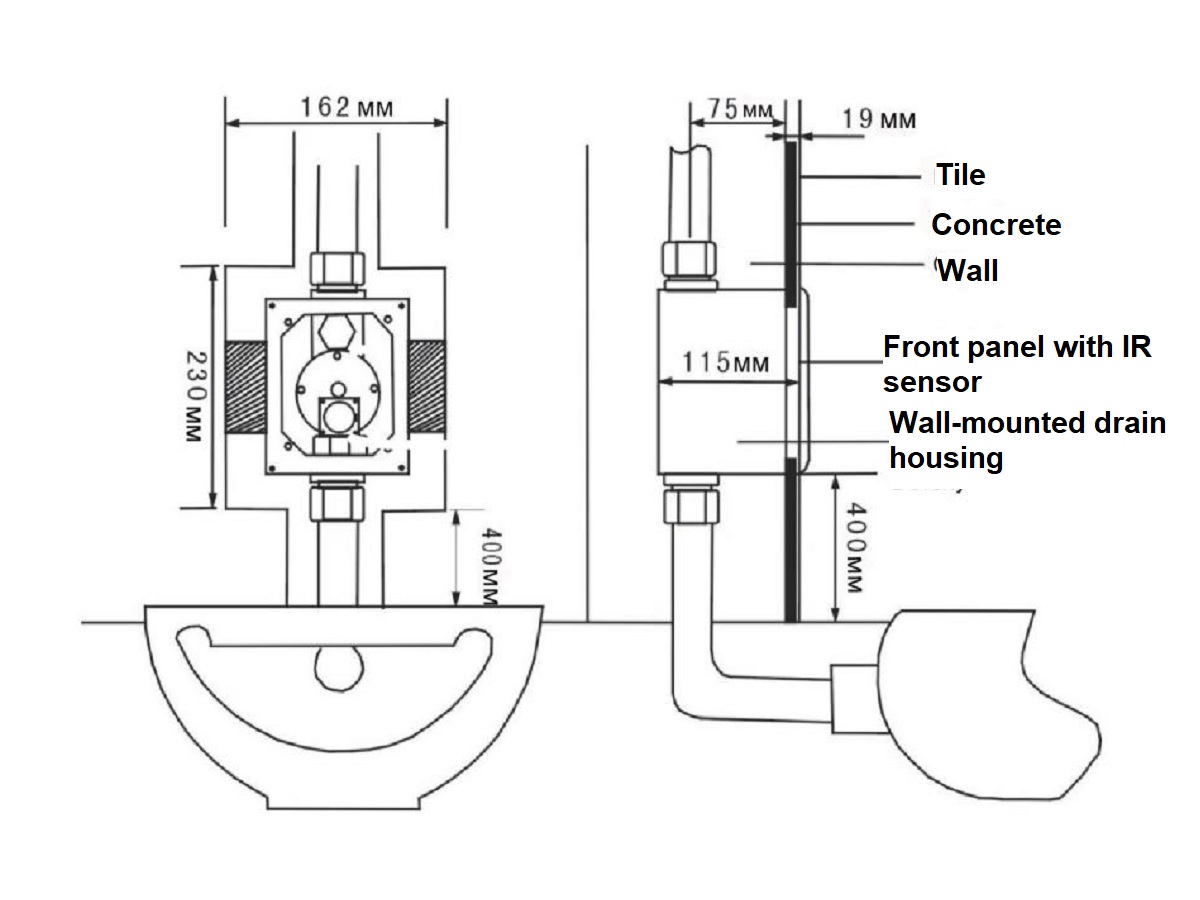

- Installation: concealed in the wall
- Water inlet: 1 inch
- Water outlet: 1 1/4 inch (32 mm)
- Protection rating: IP56
- Automatic and manual flushing
Check toilet compatibility and water supply requirements before installation. Qualified personnel should install and service the unit. Protect the sensor window from aggressive cleaning products.
- Controls - sensor operated
- Water flush mode - single mode
- Type - automatic WC flush
- Material - stainless steel SUS304
- Dimensions without packing - 125 x 125 x 125 mm
- Net weight - 2.1 kg
- Sensor type: CMOS with microcomputer KG-VII+
- Power: 0.5 mW

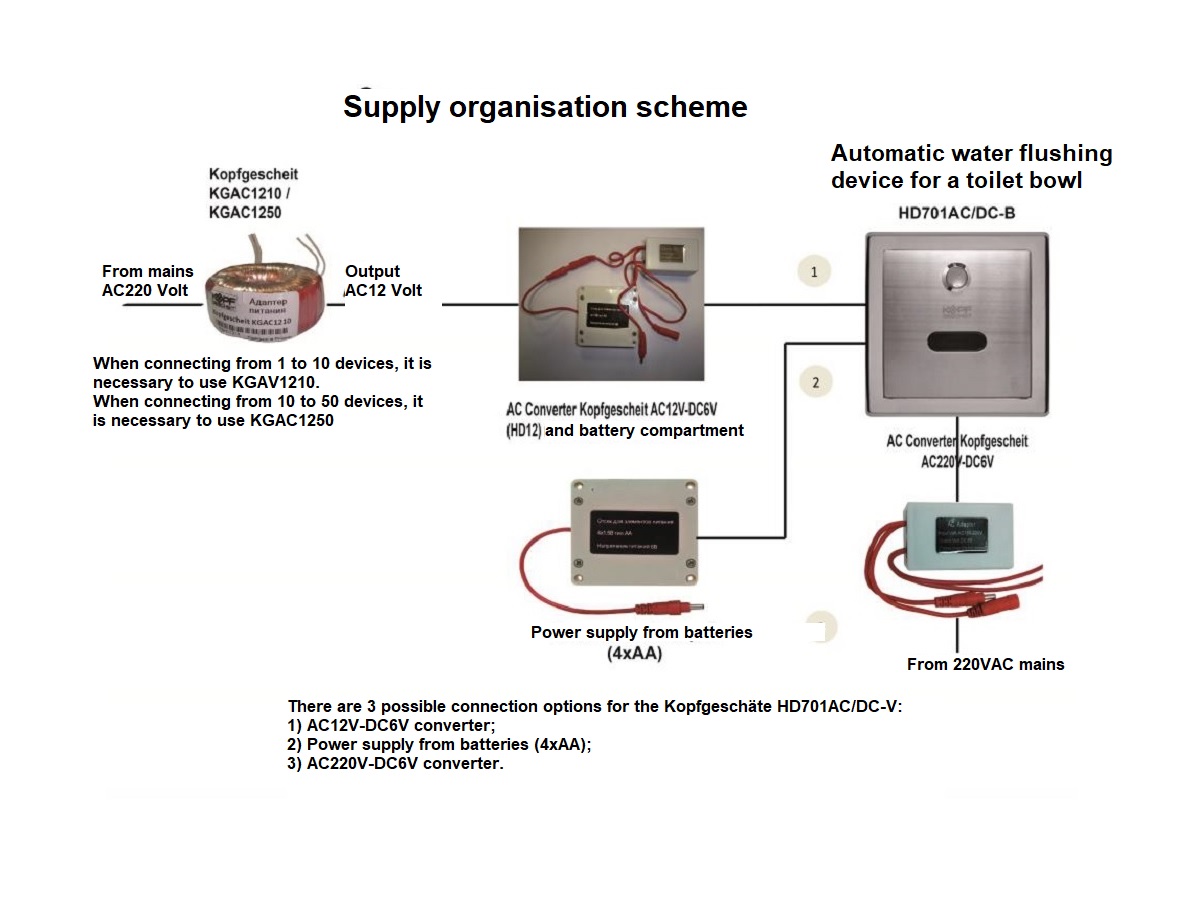

- Power supply: 6V, 4 AA batteries , Optional: AC220V, AC12V, UPS function
- Push-button pressure drain (version: red or metallic)
- Operating temperature range: +1°C to +45°C
- Inlet pipe diameter: 1 inch
- Outlet pipe diameter: 1 1/4" (32 mm)
- Water volume: 4 to 12 litres (adjustable)
- Switching area: 40-70 cm (adjustable)
- Can be remotely adjusted using remote control
- Working pressure: 0.3 - 0.7 MPa
- Protection class: IP56
- Solenoid valve in mounting box - 1 pc.
- Protective cover - 1 pc.
- Front panel of the unit - 1 pc.
- Battery compartment - 1 pc.
