Products
Sku KG6524

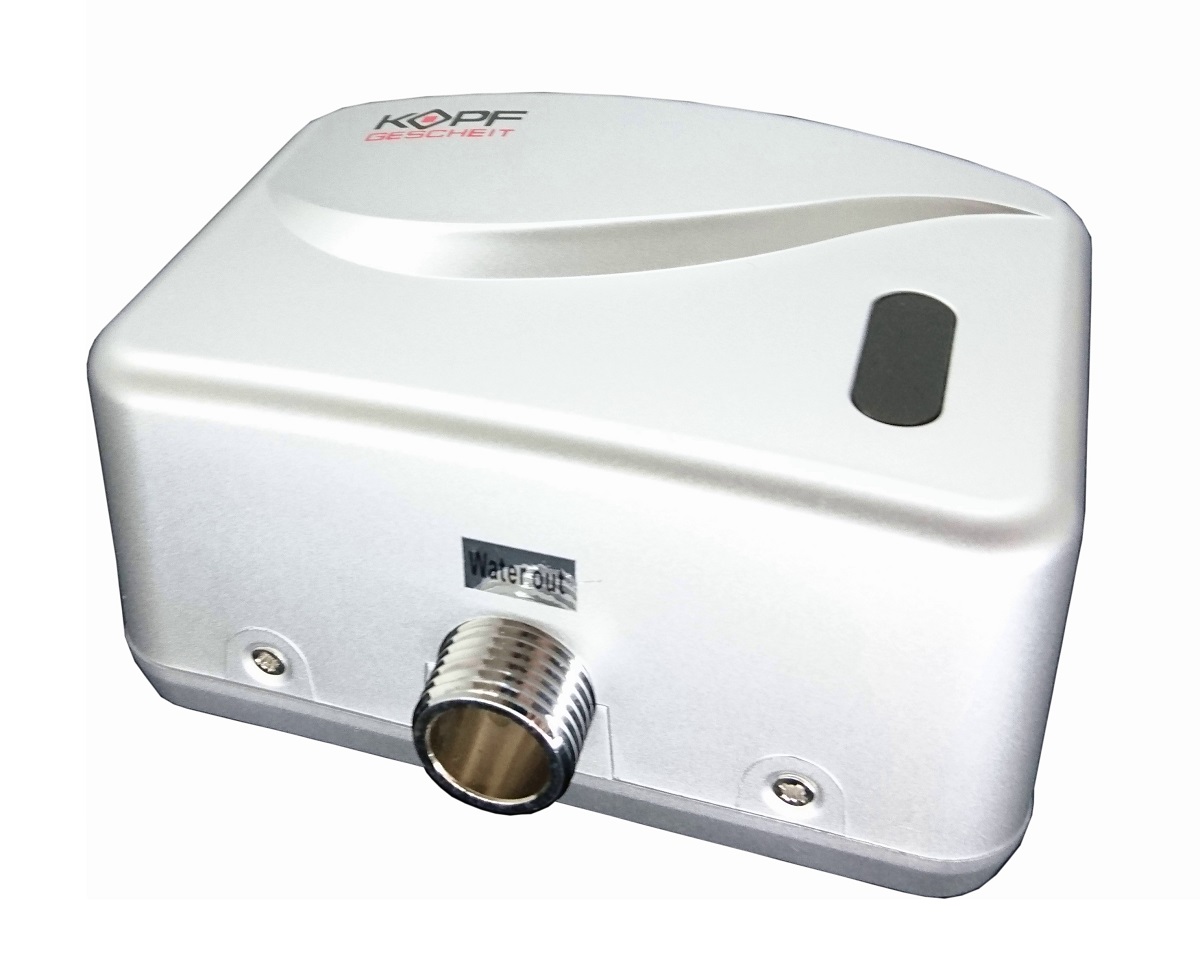

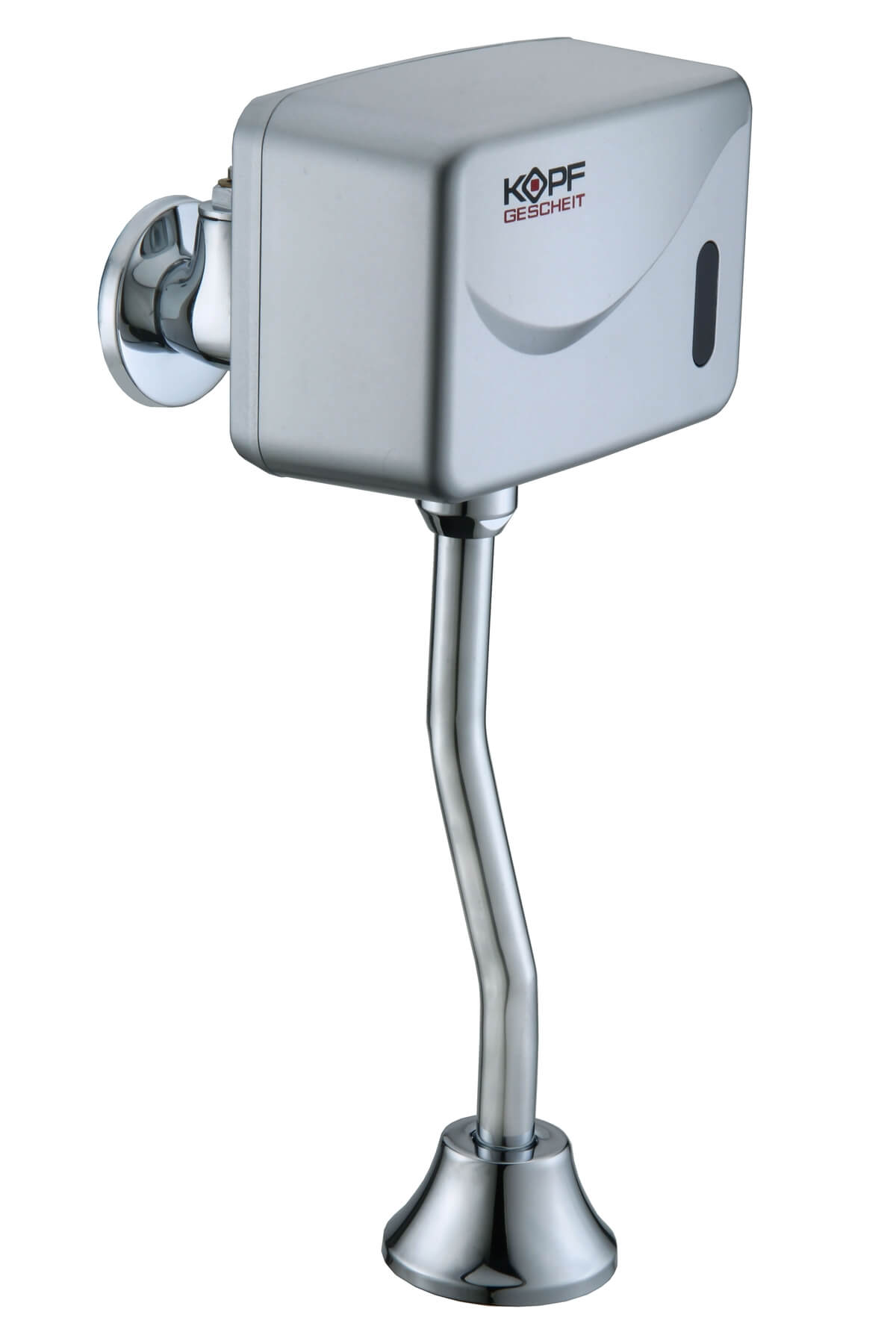

KG6524 Automatic Flush Unit for Exposed-Inlet Urinals
137€
The Kopfgescheit KG6524 adds sensor-controlled flushing to urinals with an exposed water supply. Its white housing, adjustable flow and integrated filter make it suitable for new installations and upgrades to existing manual urinals.
Upgrade to automatic urinal flushing
The KG6524 performs a two-second preliminary rinse when a user approaches and a main flush after departure. The main flush lasts four seconds for use under 20 seconds, or six seconds for longer use.
Features and installation
- Power: four AA batteries or rechargeable AA cells
- Water supply connection: 1/2 inch
- Brass waterway with integrated coarse filter
- External water-flow adjustment
- Automatic sensor setup with optional KG000 RC remote adjustment
- White housing with chrome-finished connection tubes
Suitable for commercial washrooms in hospitality, offices, schools and sports facilities. Maintenance includes battery replacement and filter cleaning. Use cleaners suitable for the sensor window, plastic housing and chrome surfaces. Installation should be carried out by qualified professionals.
-
Urinal faucet type - sensor flush
-
Adjustment - yes
-
Colour - white
-
Material - brass
connection size - 1/2" -
Net weight - 0,74 kg
-
Dimensions without packing - 68 x 120 x 270 mm
-
Sensor type - CMOS with microcomputer KG-VII+
-
Power - 0.5 mW
-
Power supply voltage - 6B, 4 AA batteries
-
Operating temperature range - +0.1°C to +45°C
-
Inlet and outlet pipe diameter - DN15
-
Switching zone - 30-80 cm
-
Can be remotely set via remote control
-
Working pressure 0.03 - 0.7 MPa
-
Installation - external, into the wall against the pipe
-
Protection class - IP56
- Flush unit main assembly - 1 pc.
- Metal tube - 1 pc.
- Rubber collar - 1 pc.
- Pipe fixing nut - 1 pc.
- Decorative cover - 2 pcs.
- Water pressure regulator with filter - 1 pc.
