KG6433DC Concealed Automatic Urinal Flush Unit
The Kopfgescheit KG6433DC is a concealed automatic urinal flush unit with a SUS304 stainless steel front panel. It combines touch-free sensor control with a brass solenoid valve, integrated water filter and adjustable flow.
Concealed flushing for commercial urinals
The KG6433DC fits into the wall for a neat installation. After detecting a user for two seconds, the unit performs a two-second preliminary rinse. The main flush follows departure and lasts four or six seconds depending on the duration of use.
Power and maintenance
Standard operation uses four AA batteries (6 V DC). The optional KG-PSU2 module enables compatible external power and automatic battery backup changeover. The sensor adjusts automatically and can be configured using the optional KG000 RC remote.
- Front panel: SUS304 stainless steel
- Water inlet and outlet: DN15 / G1/2
- Brass solenoid valve with integrated filter and flow regulator
- Protection rating: IP65
- Energy-saving standby operation
The decorative panel provides service access for filter cleaning, flow adjustment and battery replacement. Avoid aggressive cleaning products on the sensor window. Installation and electrical connections should be handled by qualified professionals.
- Inlet and outlet pipe diameter - DN15 (G1/2')
- Power consumption 0.5 mW - 2W.
- Power supply - universal, DC6V (4xAA batteries), optional AC220V, AC/DC12V, UPS function
- Operating temperature range - +0.1°C to +45°C
- Working pressure - 0.03 to 0.7 MPa
- Switching zone - 40 cm (factory setting)
- Can be remotely set via remote control
- Protection class - IP65

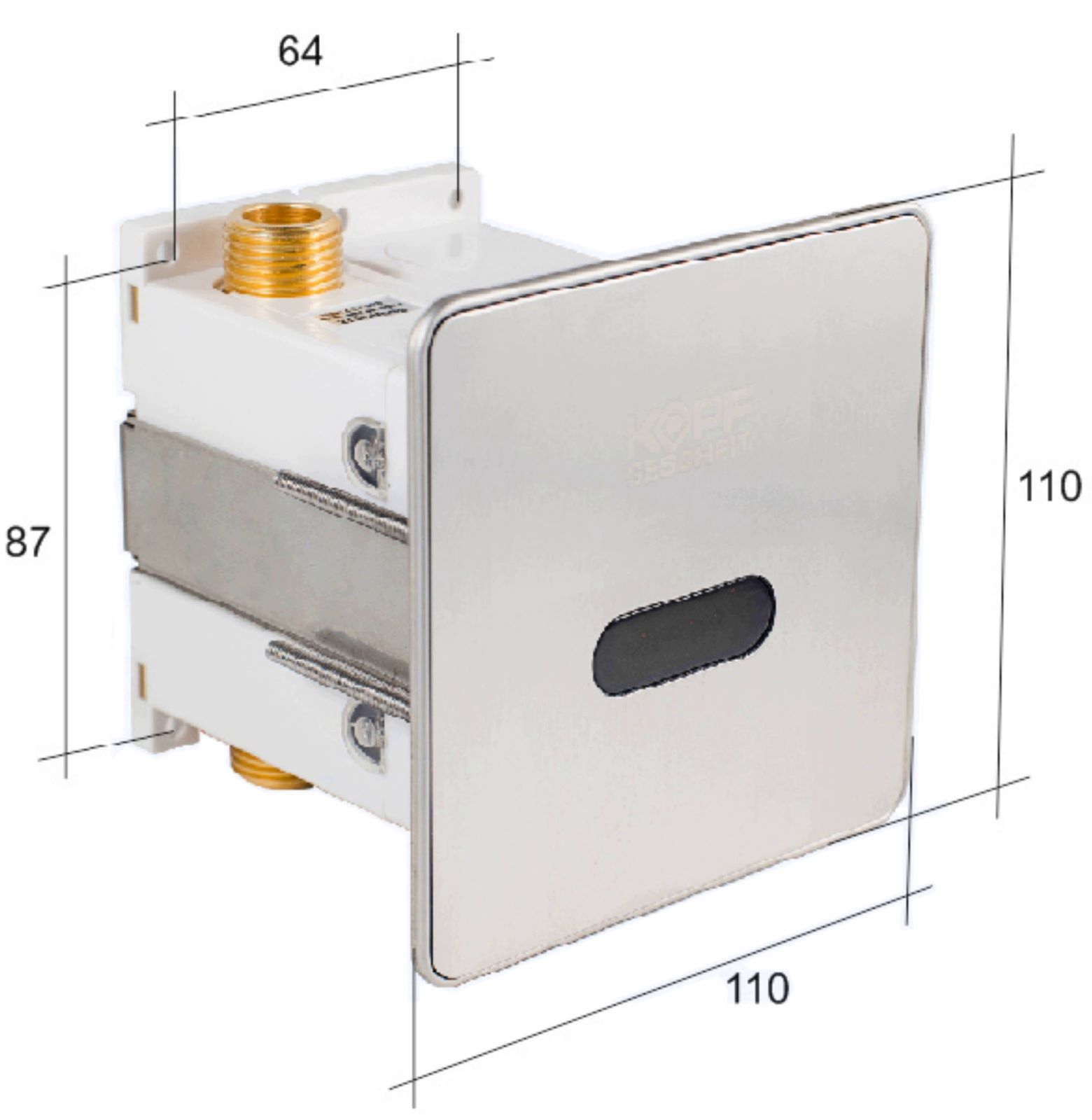

- Panel size - 110x110 mm
- Decorative plate - 1 pc.
- Mounting plate with sensor assembly - 1 pc.
- Valve unit and power supply unit assembly - 1 pc.
- Mounting U-bars - 1 pc.
- Screw for fixing the mounting plate - 4 pcs.
- Screw complete with dowel for fixing the valve block
and sensor unit - 4 pcs. - Suction cup for removing the decor plate - 1 pc.
- Product data sheet with warranty card - 1 pc.
