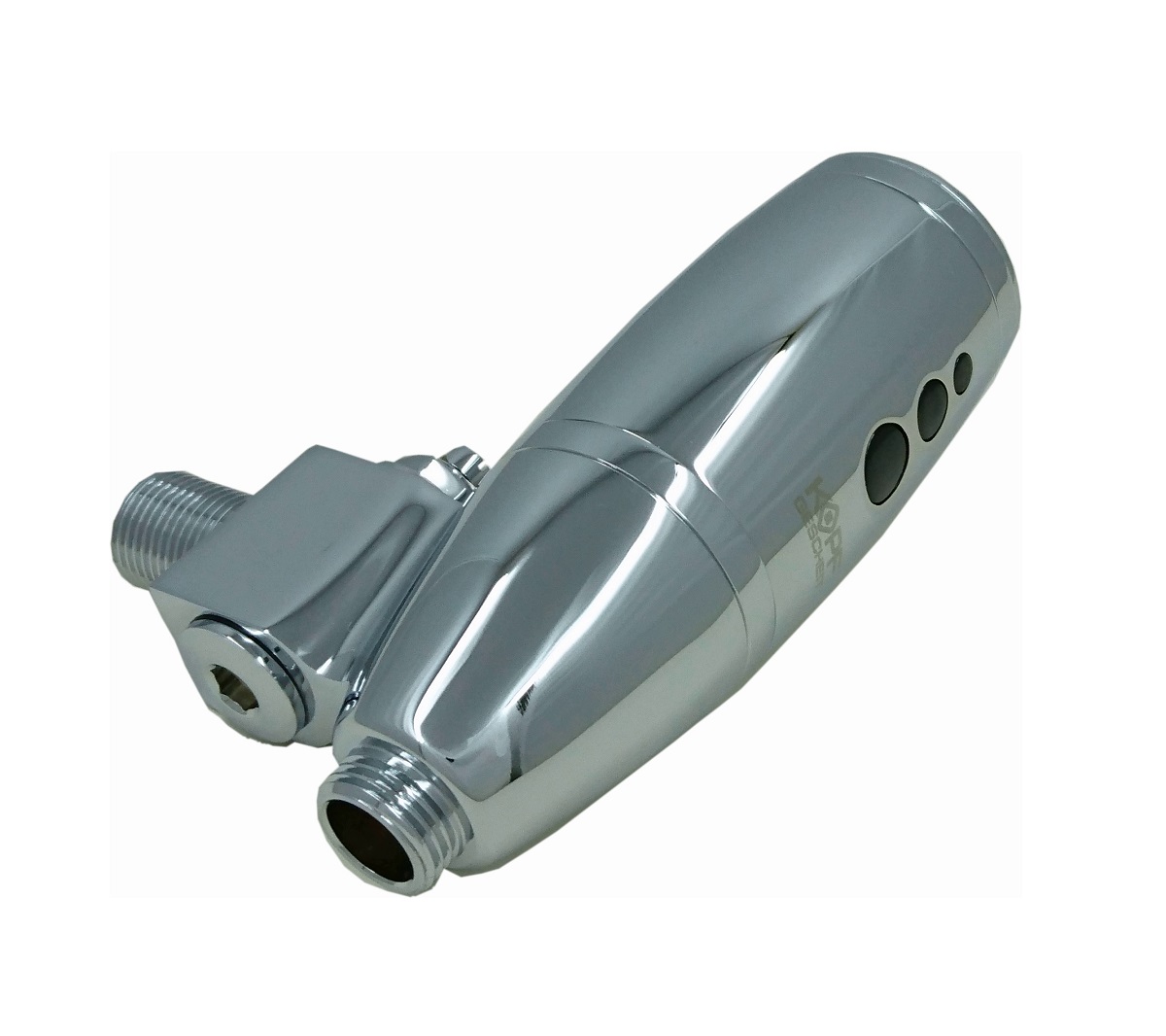

KG6329 Automatic Flush Valve for Exposed-Inlet Urinals
The Kopfgescheit KG6329 automatic flush valve upgrades new or existing urinals with an exposed water inlet. Sensor-controlled rinsing, adjustable flow and standard AA battery power provide a practical retrofit for commercial washrooms.
Automatic flushing for exposed-inlet urinals
The KG6329 uses a sensor within the chrome-finished housing to start a preliminary rinse and flush automatically after the user leaves. A two-second presence triggers a two-second pre-rinse. The main flush lasts four seconds for use under 20 seconds, or six seconds for longer use.
Installation and adjustment
- Water inlet and outlet: 1/2 inch
- Power: four AA batteries or rechargeable AA cells
- Brass waterway with integrated coarse filter
- External water-flow adjustment
- Automatic sensor sensitivity adjustment; optional KG000 RC remote
- Protection rating: IP56
Suitable for retrofitting manual urinals in public and commercial buildings. Use cleaning products suitable for chrome and the sensor window; aggressive cleaners can damage these surfaces. Installation and servicing should be carried out by qualified professionals.
- Sensor type - CMOS with microcomputer KG-VII+
- Power - 0.5 mW
- Power supply voltage - 6V, 4 AA batteries (not included), DC
- Operating temperature range - 0.1°C to +45°C
- Inlet and outlet pipe diameter - DN15
- Switching zone - 30-80 cm
- Can be remotely set using a remote control (not included)
- Working pressure 0.03 - 0.7 MPa
- Installation - external, into the wall to the pipe
- Protection class - IP56
- Manual - 1 pc.
- Complete device (incl. valve, housing, battery compartment) - 1 pc.
- Gasket - 1 pc.
- Tube - 1 pc.
- Nut - 1 pc.
- Decorative cover for gasket - 1 pc.
- Decorative plug for tube - 1 pc.
- M20 - 1 pc.
