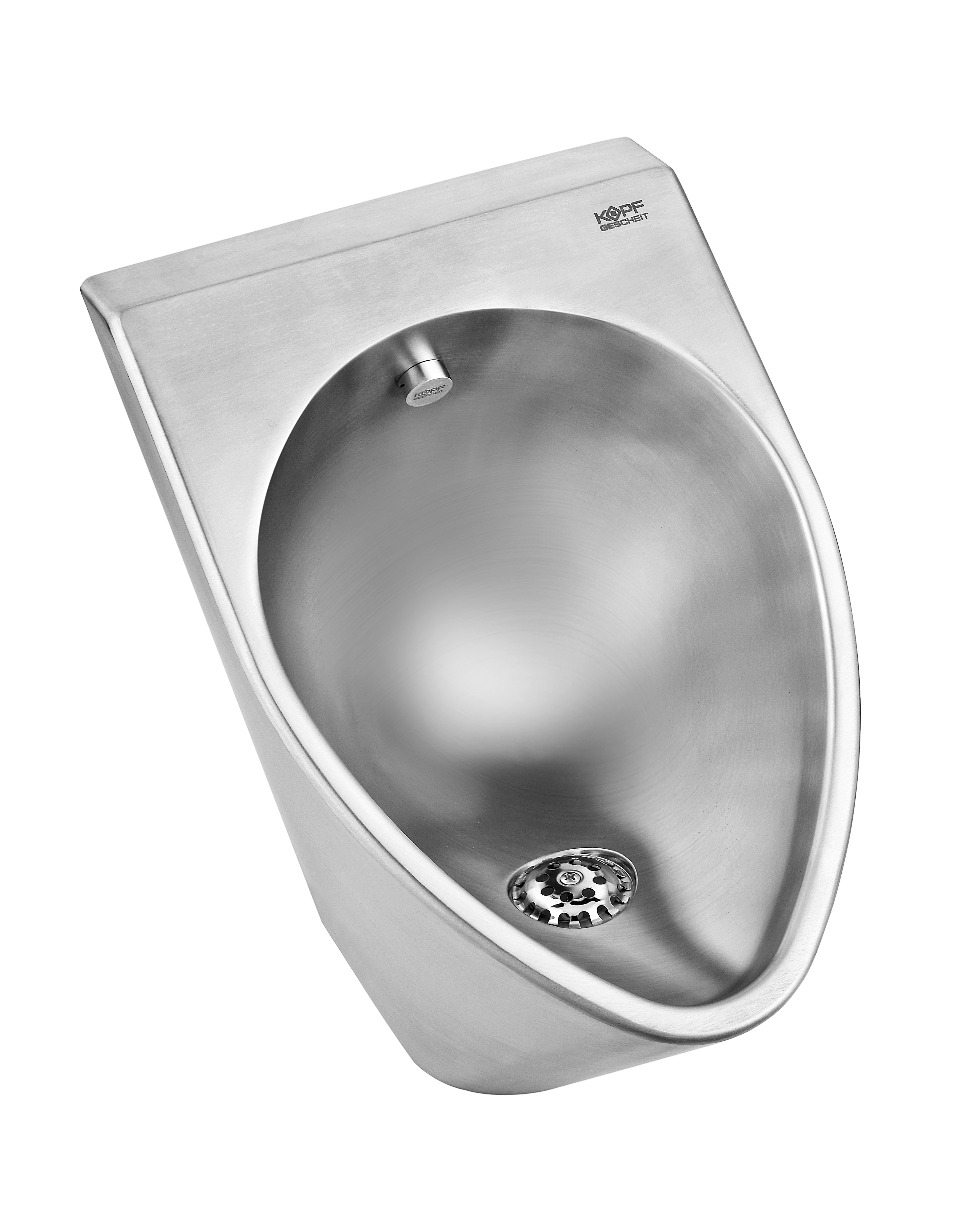

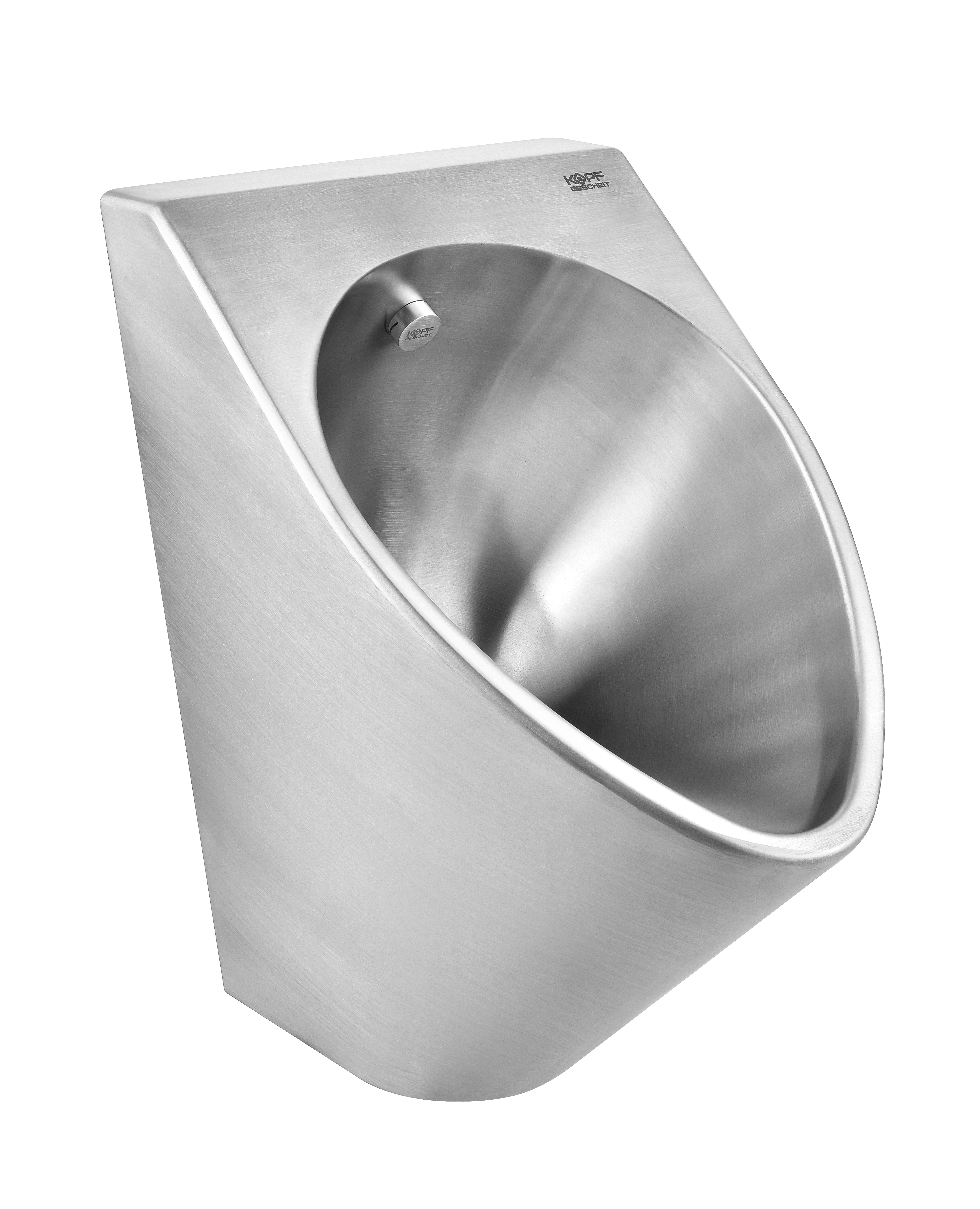

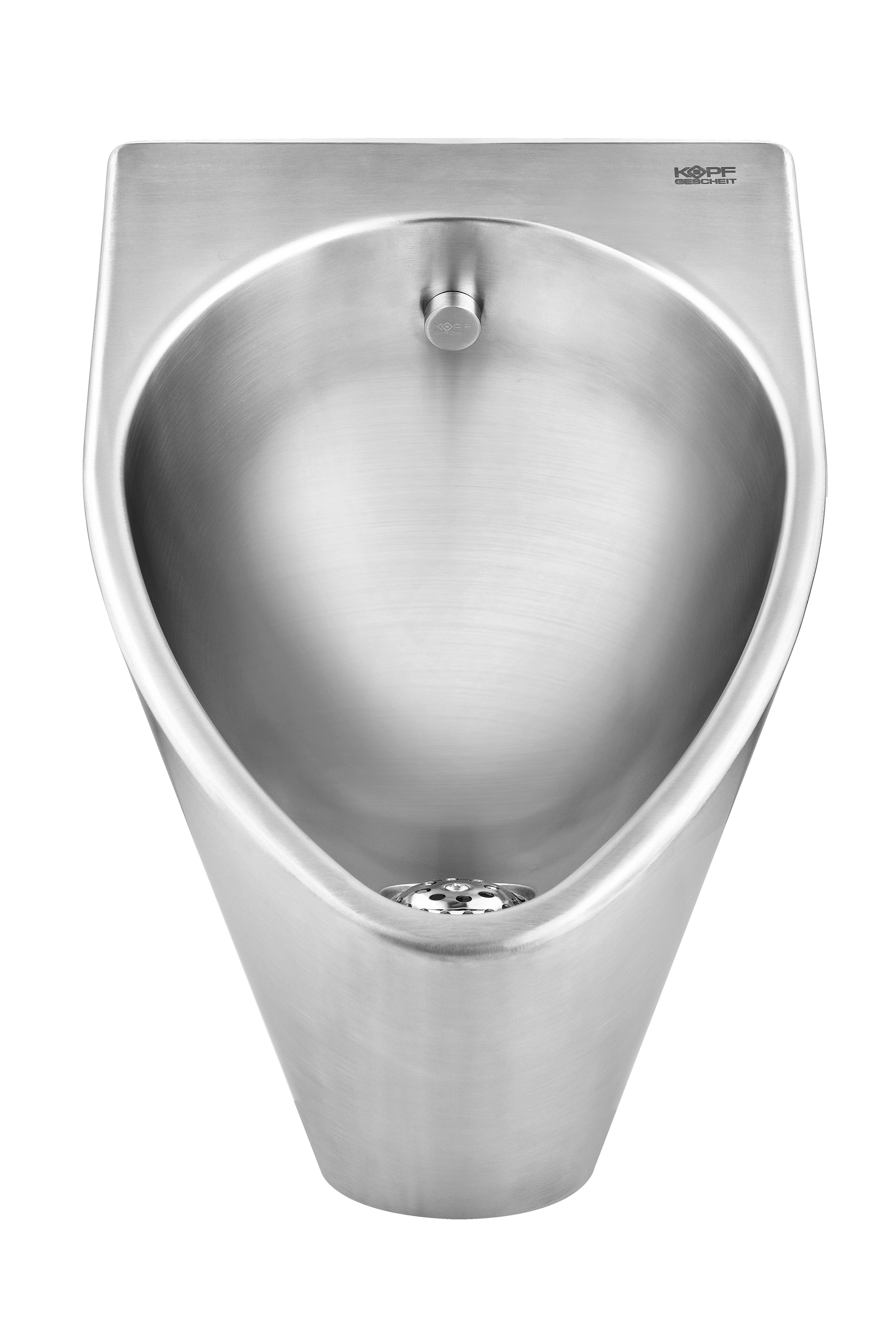

KG6430 Stainless Steel Automatic Urinal with Weesens Sensor
The Kopfgescheit KG6430 automatic urinal combines a 1.5 mm SUS304 stainless steel body with a concealed Weesens sensor. Designed for high-traffic commercial washrooms, it offers touch-free flushing and enhanced resistance to vandalism.
Stainless steel durability with automatic flushing

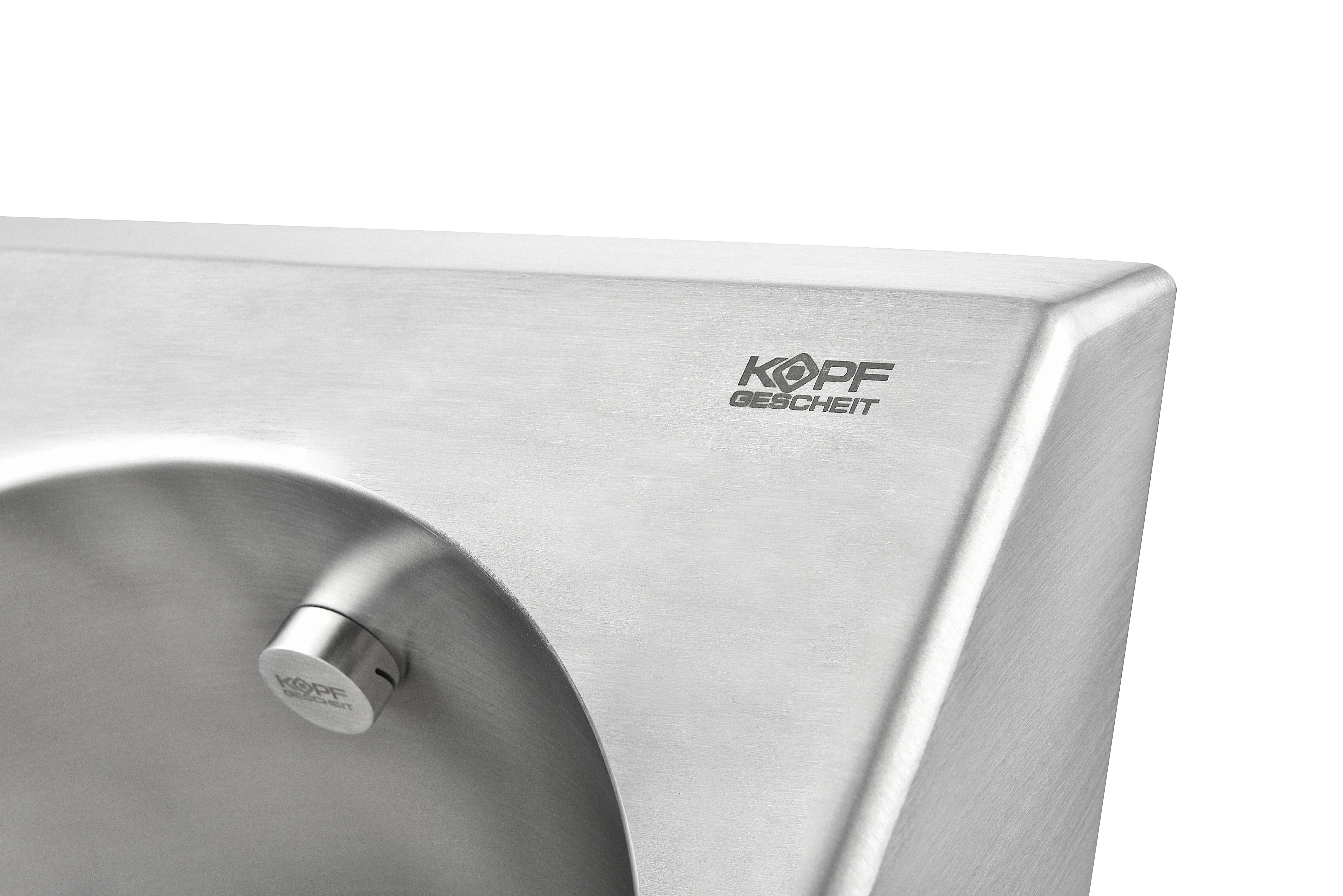

The KG6430 is a wall-mounted urinal made from 1.5 mm SUS304 (AISI 304) stainless steel. The concealed Weesens sensor detects liquid passing through the trap, keeping the sensing components protected from direct contact.
Automatic washroom operation
The system calibrates at first power-up, provides a preliminary rinse and triggers the main flush after use. Overflow protection and a flush after 24 hours of inactivity help maintain the trap seal and support everyday operation.
Installation and power

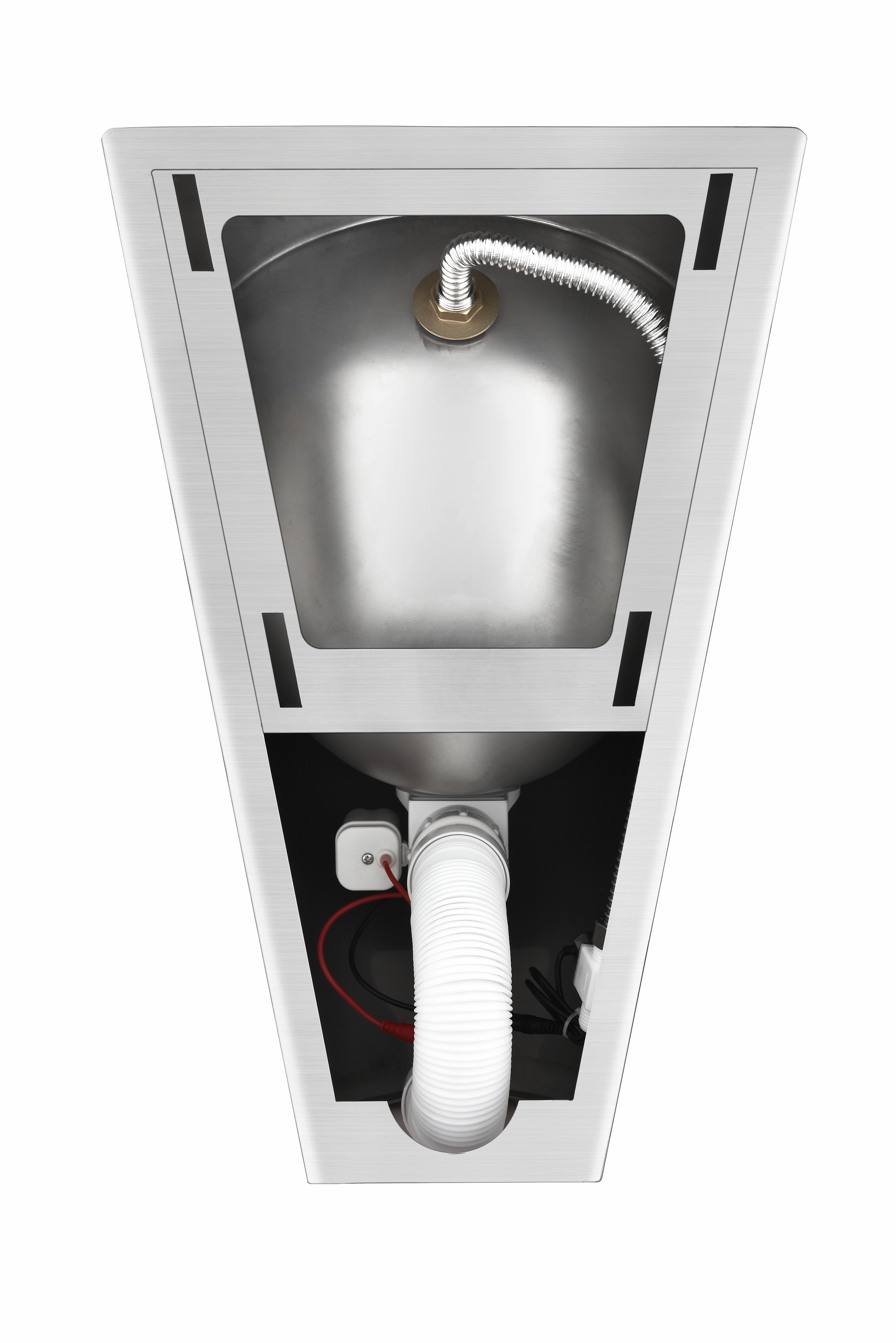

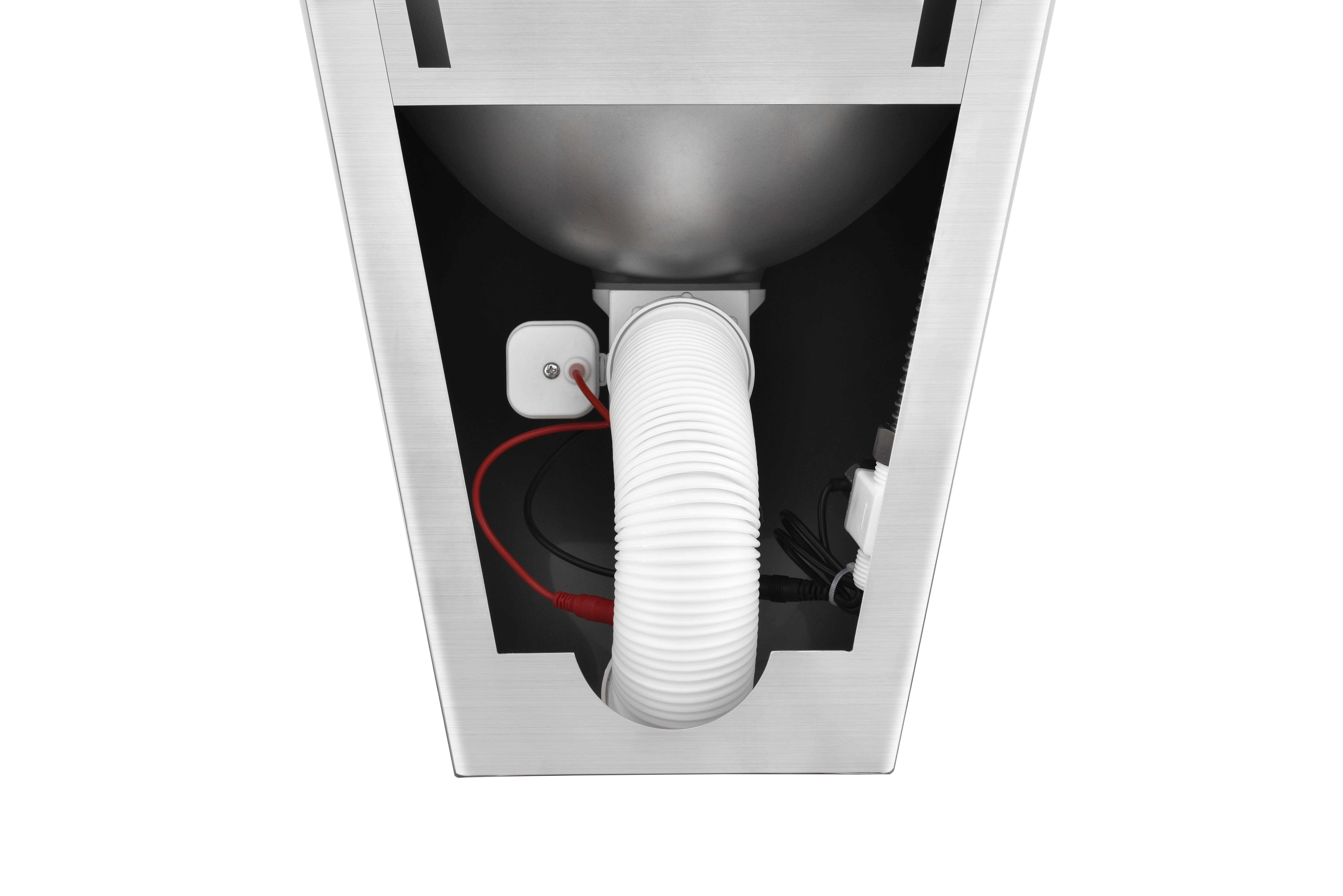

The concealed water inlet and supplied mounting kit provide a neat wall installation. Power is supplied by four AA batteries or a compatible USB source. External power and backup accessories are optional; see the KG-A469 power supply controller.
Technical specifications
- Material: SUS304 / AISI 304 stainless steel, 1.5 mm thick
- Dimensions: 412 × 330 × 500 mm
- Net weight: 7 kg
- Water inlet: 1/2 inch, concealed
- Operating pressure: 0.3–0.7 MPa
- Operating temperature: +1 to +45 °C
- Protection rating: IP56
- Weesens sensor, solenoid valve, trap and mounting kit included
Suitable for transport hubs, schools, sports facilities and hospitality washrooms where durability and touch-free use are priorities. Installation and servicing should be performed by qualified professionals.
