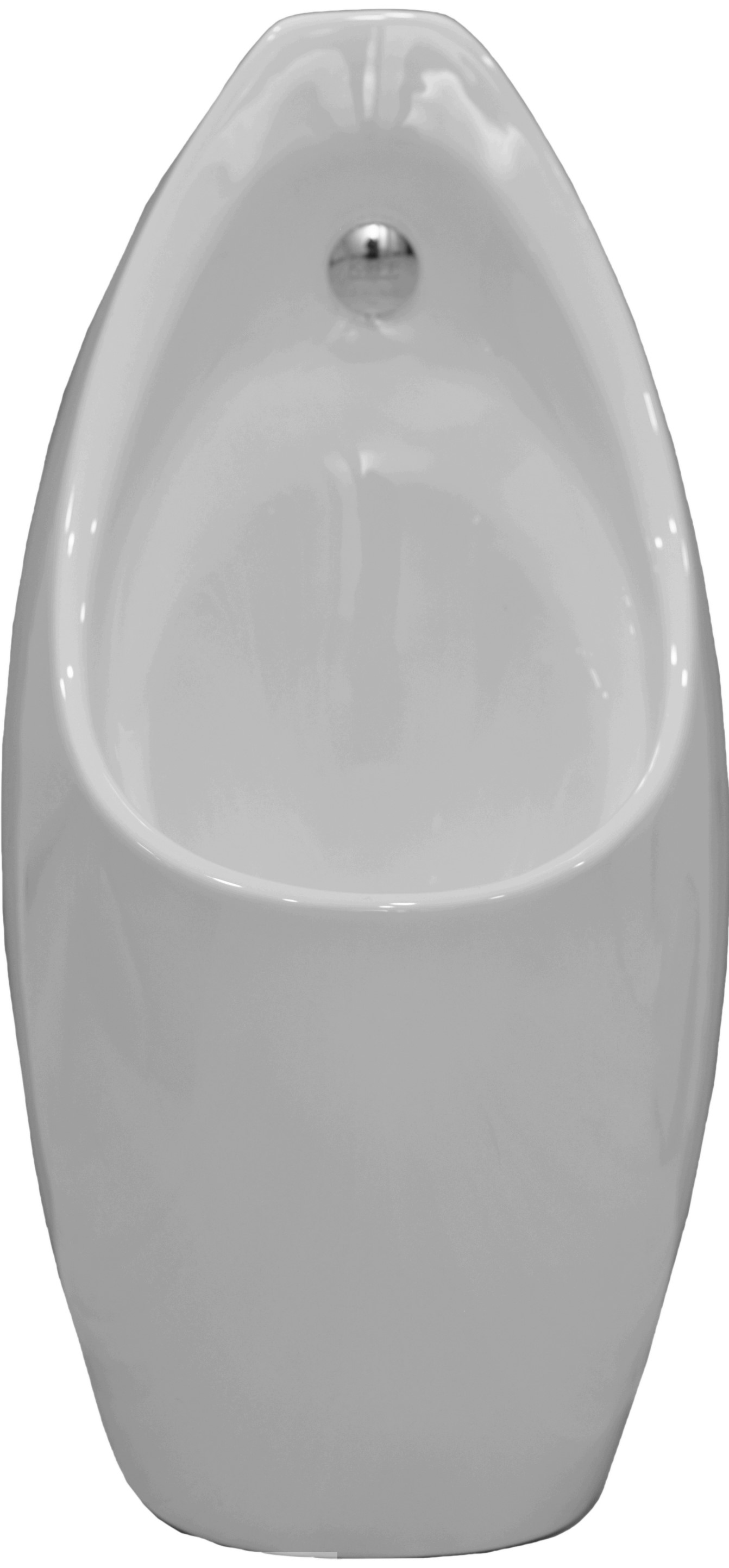

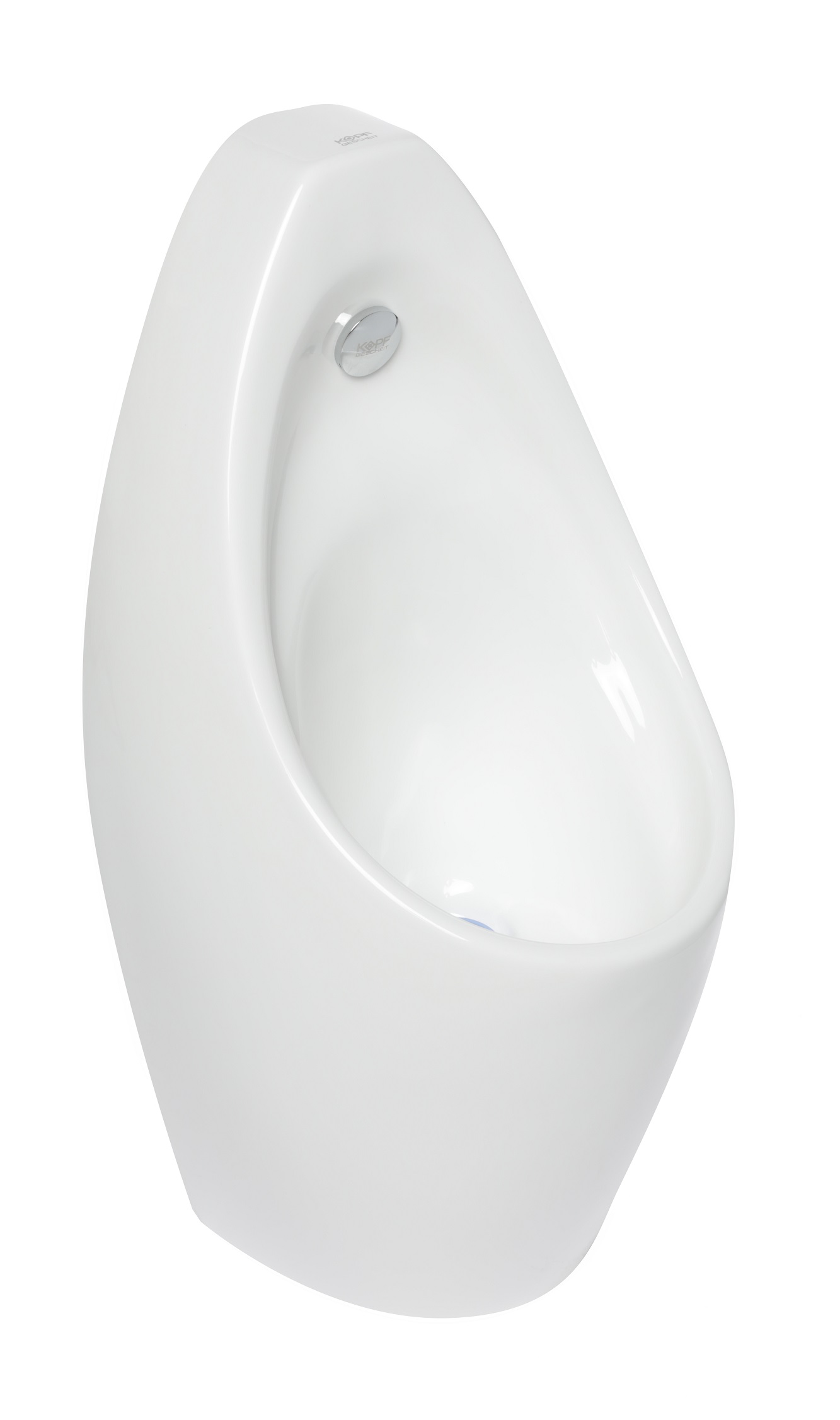

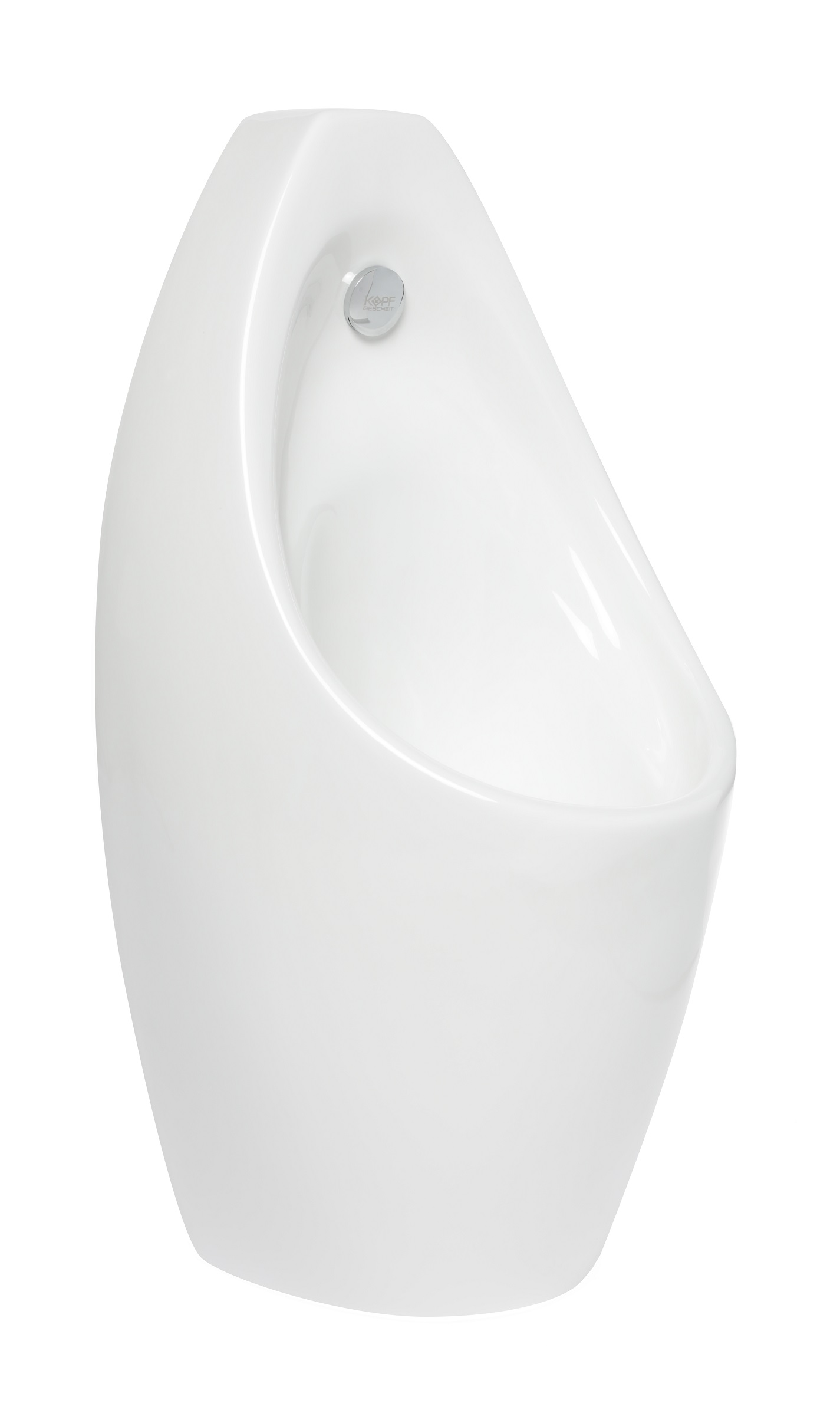

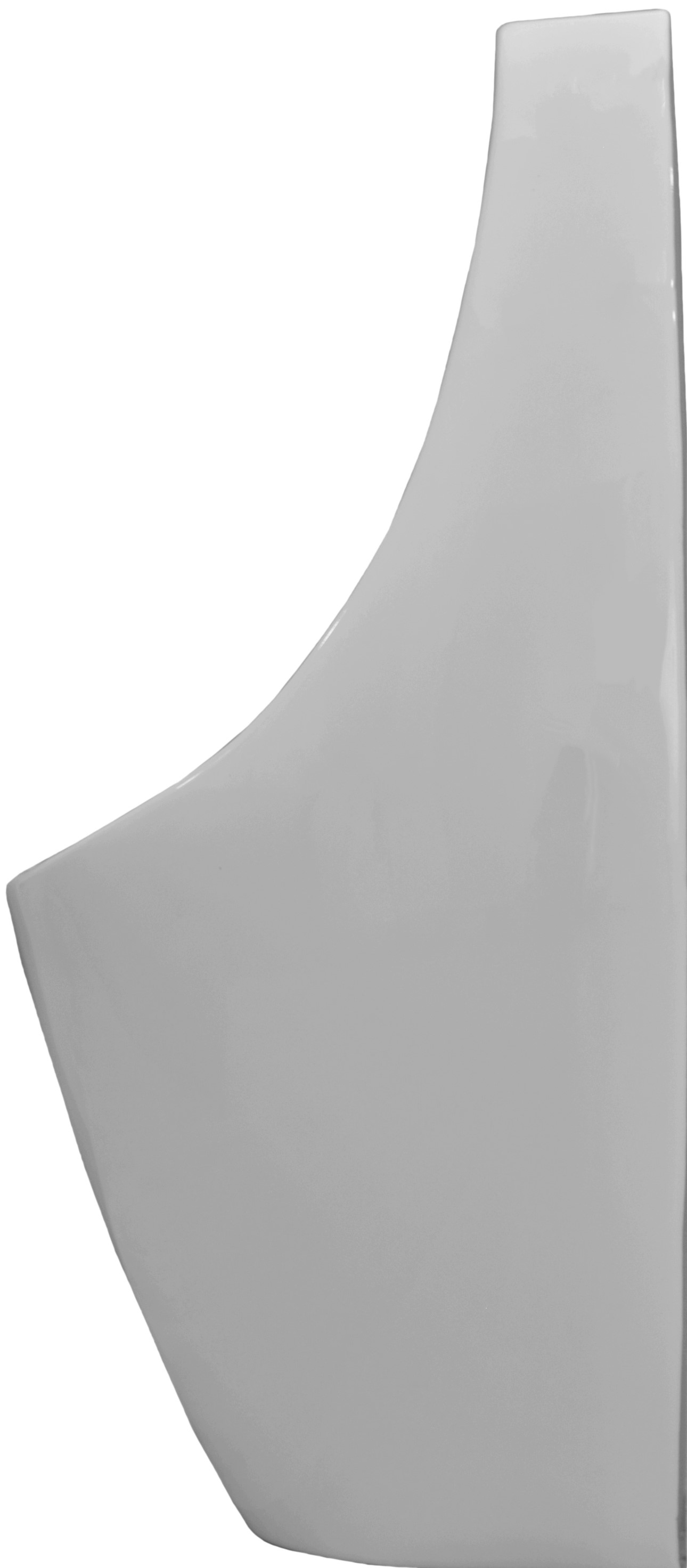

KG6022 Automatic Wall-Mounted Urinal with Weesens Sensor

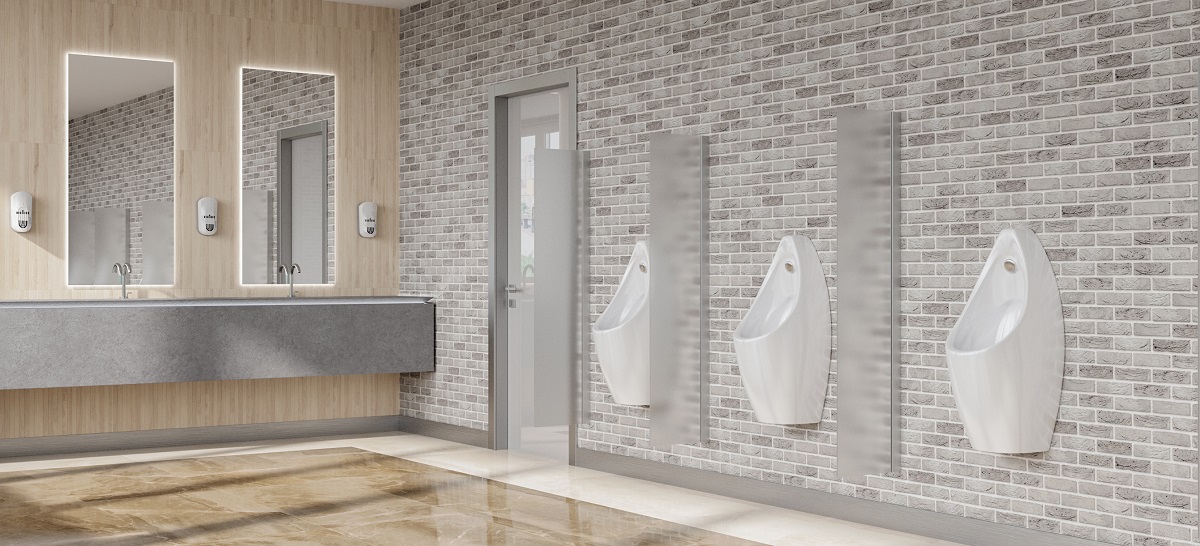

The Kopfgescheit KG6022 is a wall-mounted ceramic urinal with a concealed Weesens sensor and automatic flushing. Designed for busy commercial washrooms, it combines touch-free operation, overflow protection and an integrated water filter with adjustable flow.
Automatic flushing with a concealed Weesens sensor
The KG6022 detects liquid in the bowl using a sensor protected beneath the ceramic body. This concealed design reduces exposure to vandalism and avoids the line-of-sight limitations of conventional infrared sensors. The sensor calibrates automatically when power is first connected.
Hygienic operation and water management
An initial rinse is followed by the main flush after use. SmartDelay manages the flushing sequence during frequent use, while overflow protection helps prevent water escaping from the bowl. A maintenance flush after 24 hours of inactivity replenishes the trap seal.
Power and maintenance

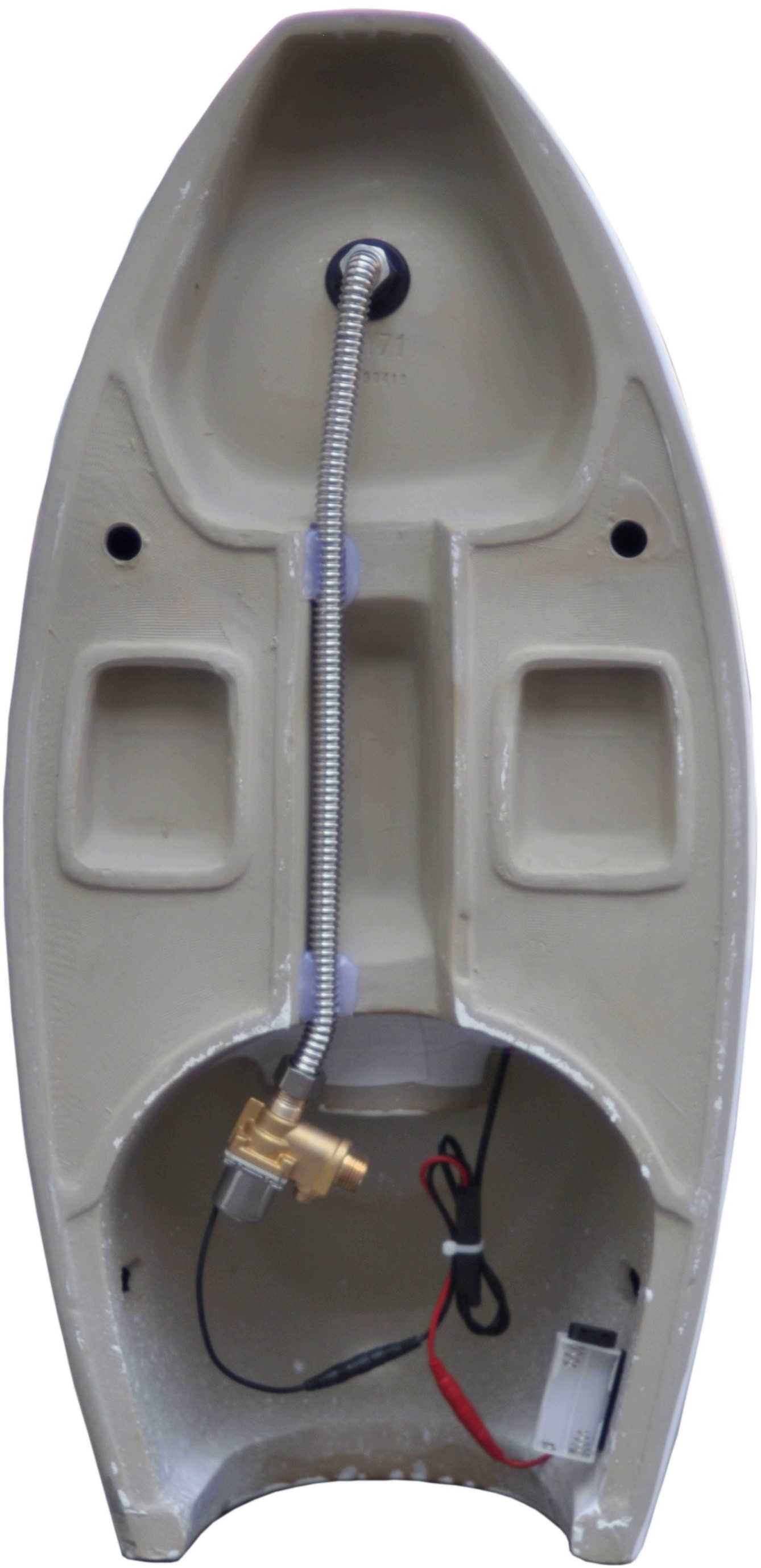

Use four standard AA batteries or a compatible USB power source. Optional external power accessories are available separately, including the KG-A469 power supply controller. The brass solenoid valve includes a flow regulator and a filter with EasyCare access for cleaning.
Technical details
- Material: white sanitary ceramic
- Installation: wall mounted, concealed water inlet
- Dimensions: 350 × 380 × 770 mm
- Net weight: 21 kg
- Water inlet: 1/2 inch
- Operating pressure: 0.3–0.7 MPa
- Operating temperature: +1 to +45 °C
- Protection rating: IP56
- Concealed Weesens sensor and solenoid valve included
The installation kit and trap are included. Installation and servicing should be carried out by qualified professionals. Suitable water filtration is recommended for reliable operation.
-
Material - sanitary ceramics
-
Water supply - hidden
-
Control - sensor
-
Shape - round
-
Installation - wall-hung
-
Outlet - universal
-
Net weight - 11,8 kg
-
Dimensions without packing - 350 x 380 x 770 mm
-
Integrated sensor
-
Power - 0.5 mW
-
Power - DC6B (4*AA batteries) optional AC220V, AC/DC12B
-
UPS function
-
Operating temperature range - +1°C to +45°C
-
Inlet pipe diameter - 1/2 inch (12mm)
-
Working pressure - 0.3 to 0.7 MPa
-
Protection class - IP56
-
Net weight 21 kg
-
Cover - no cover
-
Drainage device included - yes
- Kopfgescheit KG6022 urinal - 1 pc.
- Wall mounting kit - 1 pc.
- Packing - 1 pc.
- Product information sheet - 1 pc.
- Siphon - 1 pc.
- Aromatic scent mat - 1pc.
- USB power cable - 1 pc.
