KG6028 Automatic Ceramic Urinal with Concealed Weesens Sensor

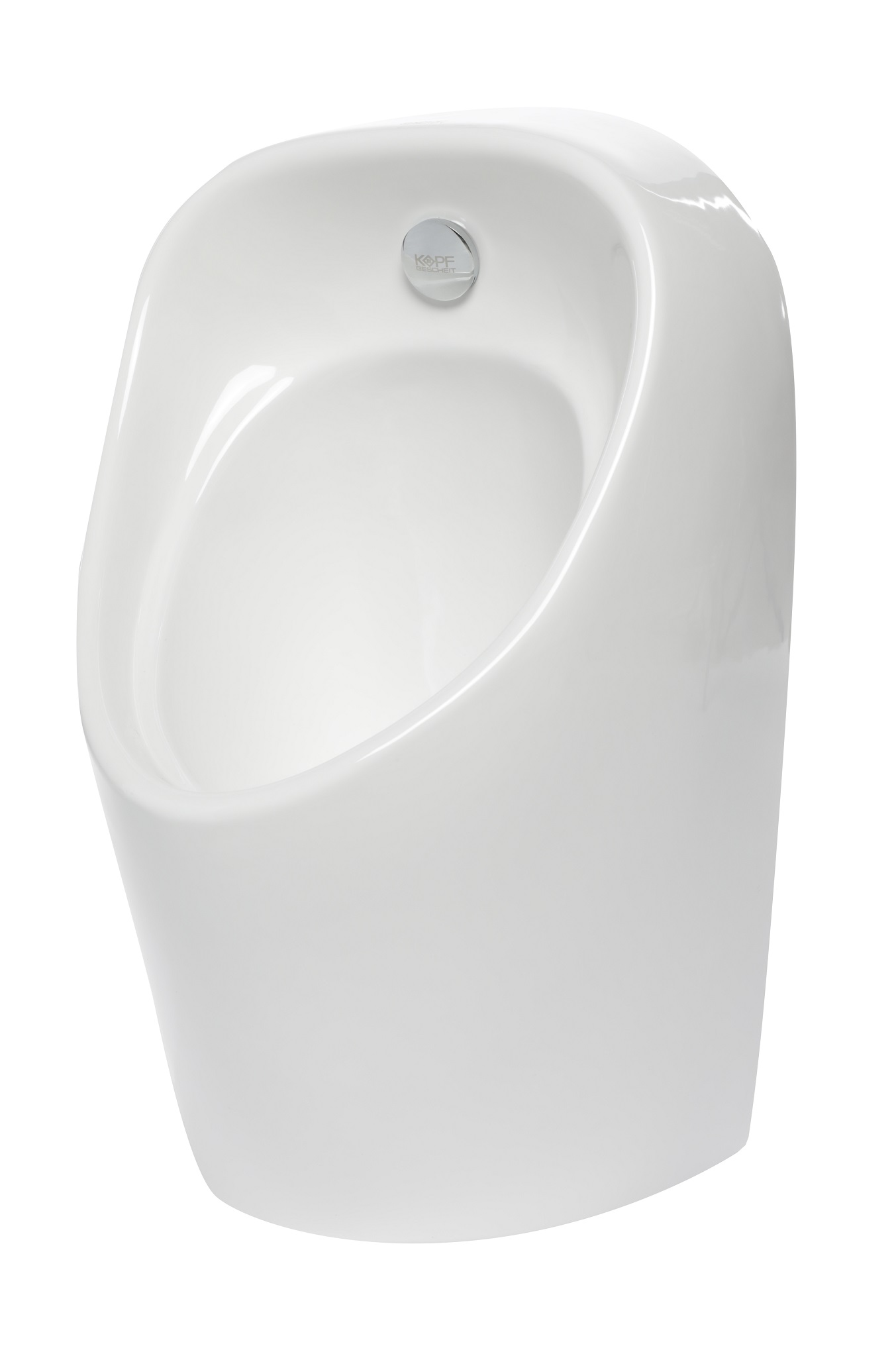

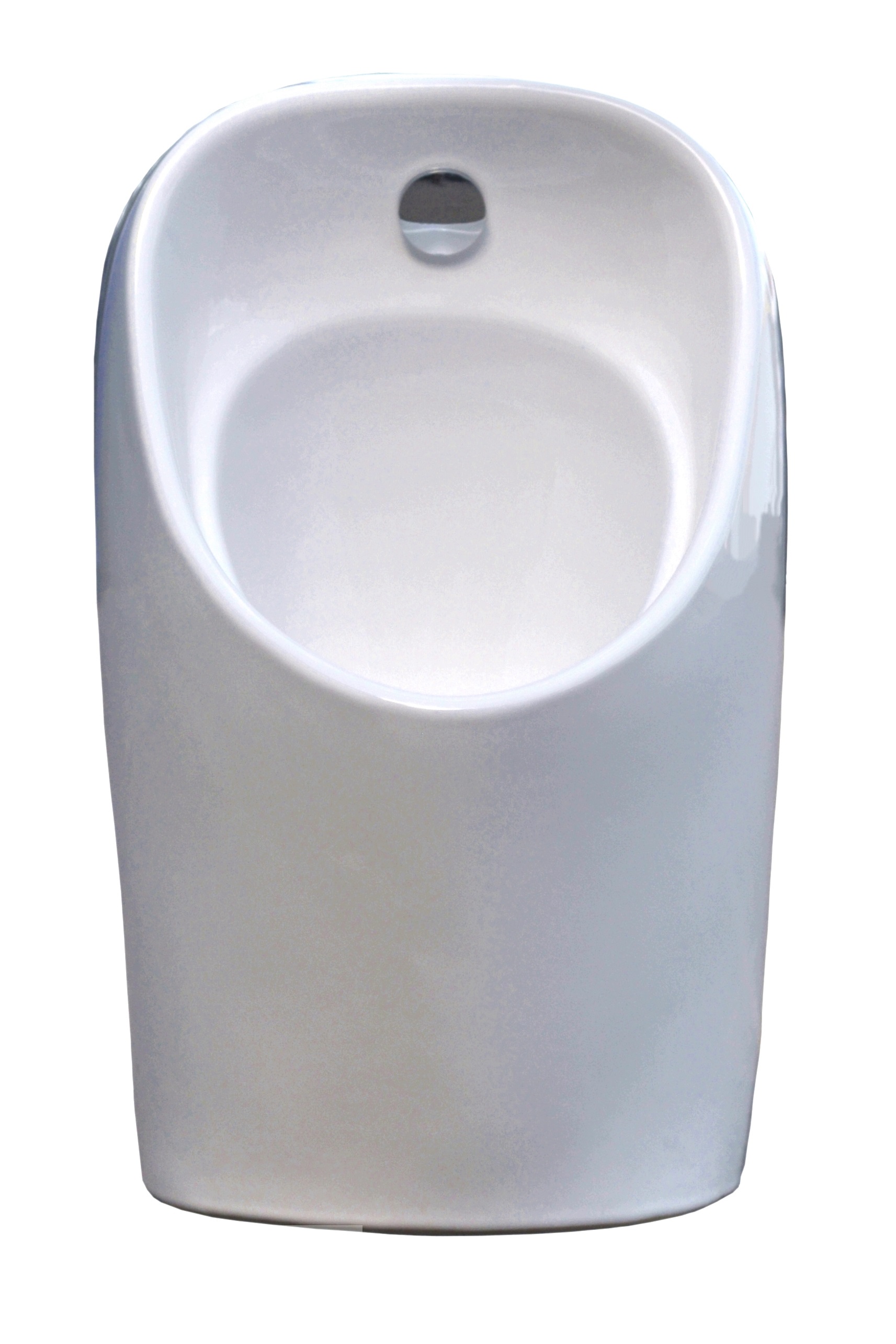

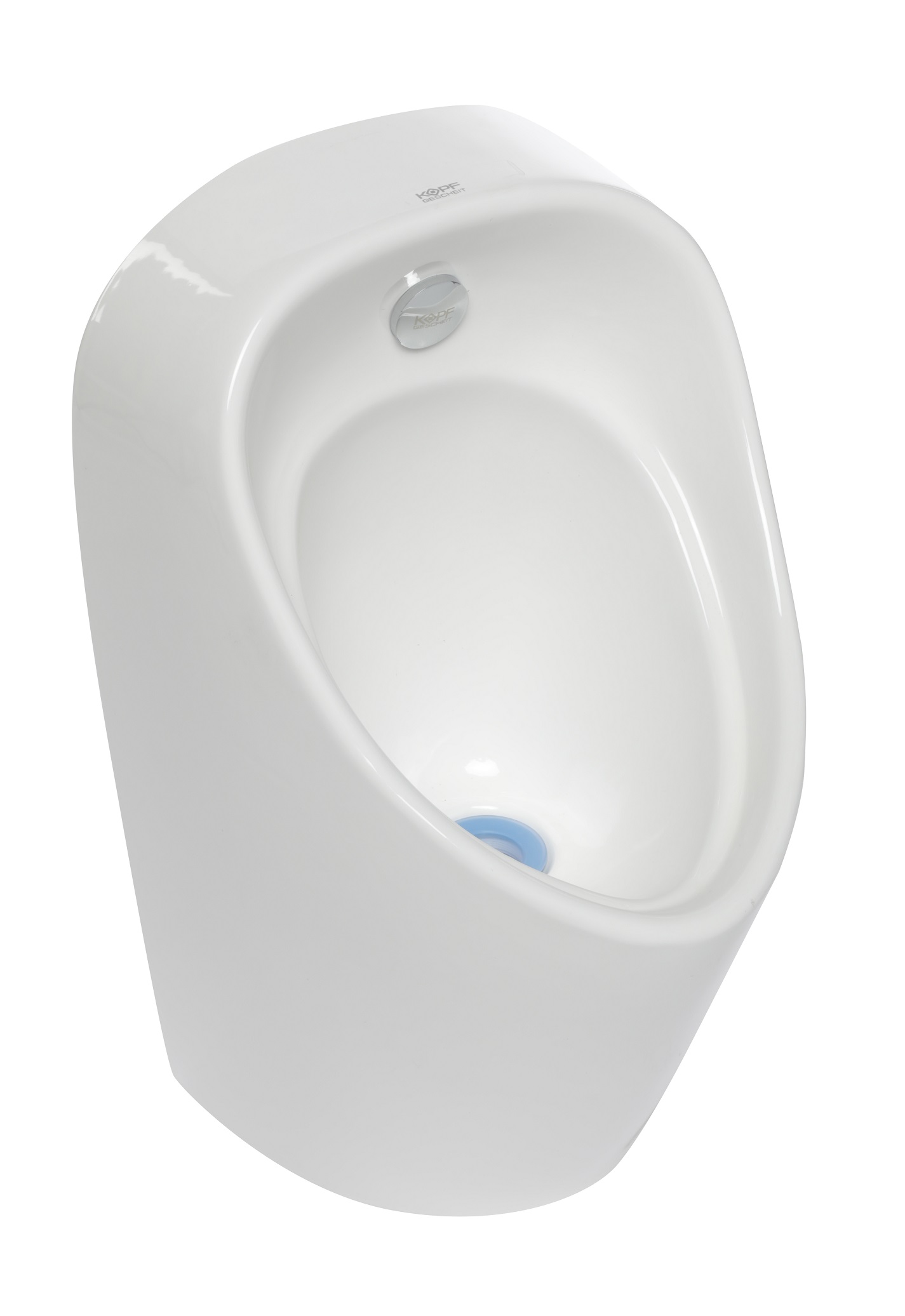

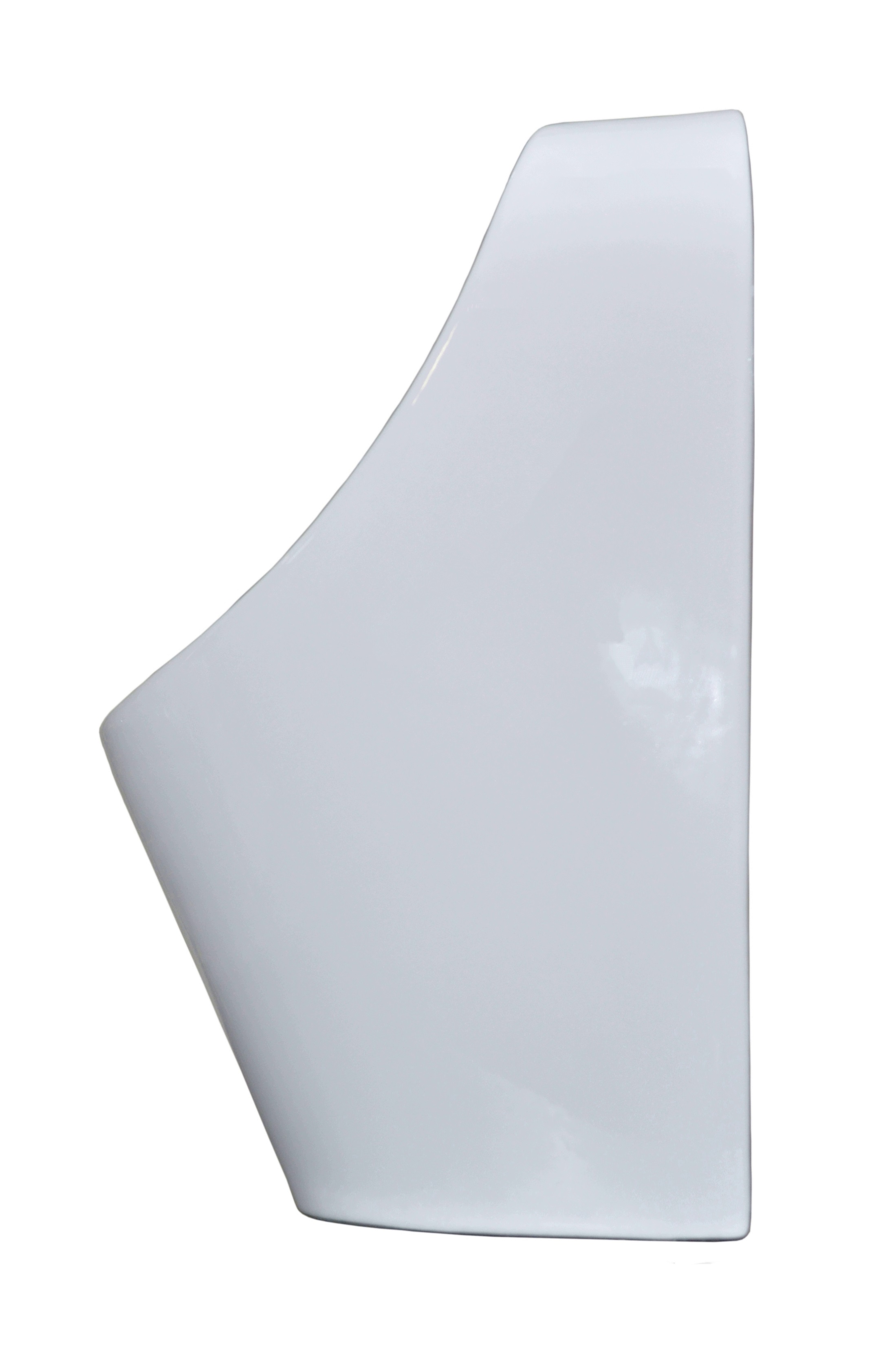

The Kopfgescheit KG6028 ceramic wall-mounted urinal provides automatic flushing through a concealed Weesens sensor. Its 610 mm-high body suits commercial washrooms, with overflow protection, adjustable water flow and straightforward filter maintenance.

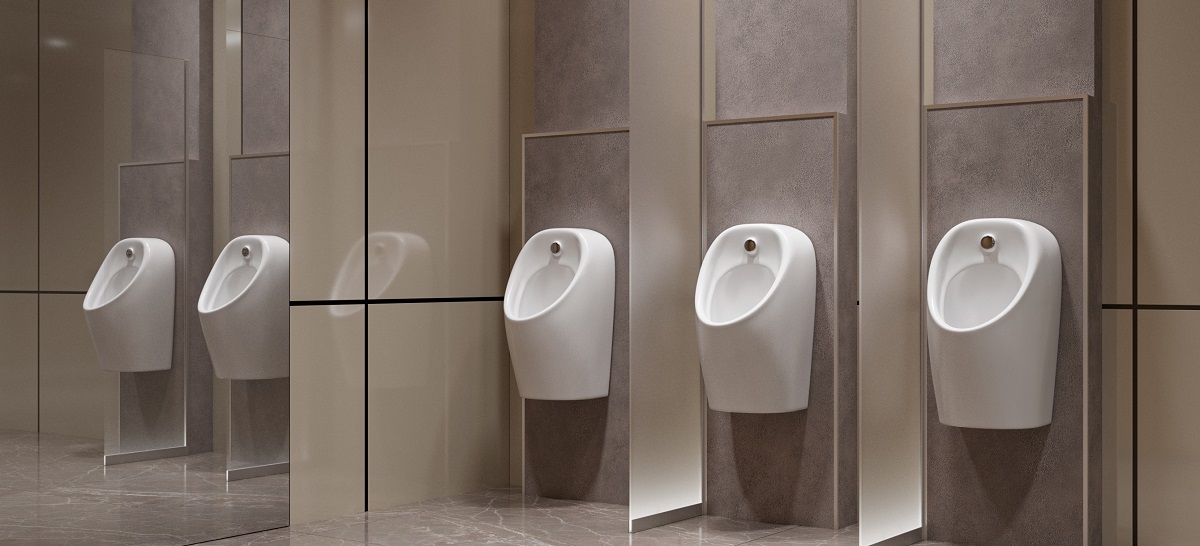

Touch-free flushing for commercial washrooms
The KG6028 uses a Weesens sensor hidden beneath the ceramic bowl to detect use and trigger flushing. The protected sensor requires no exposed infrared window and calibrates automatically when the power is connected.
Automatic rinsing and easy maintenance
The system provides a preliminary rinse and a main flush after use. SmartDelay helps manage water use during busy periods. Overflow protection and a maintenance flush after 24 hours without use support everyday washroom operation.

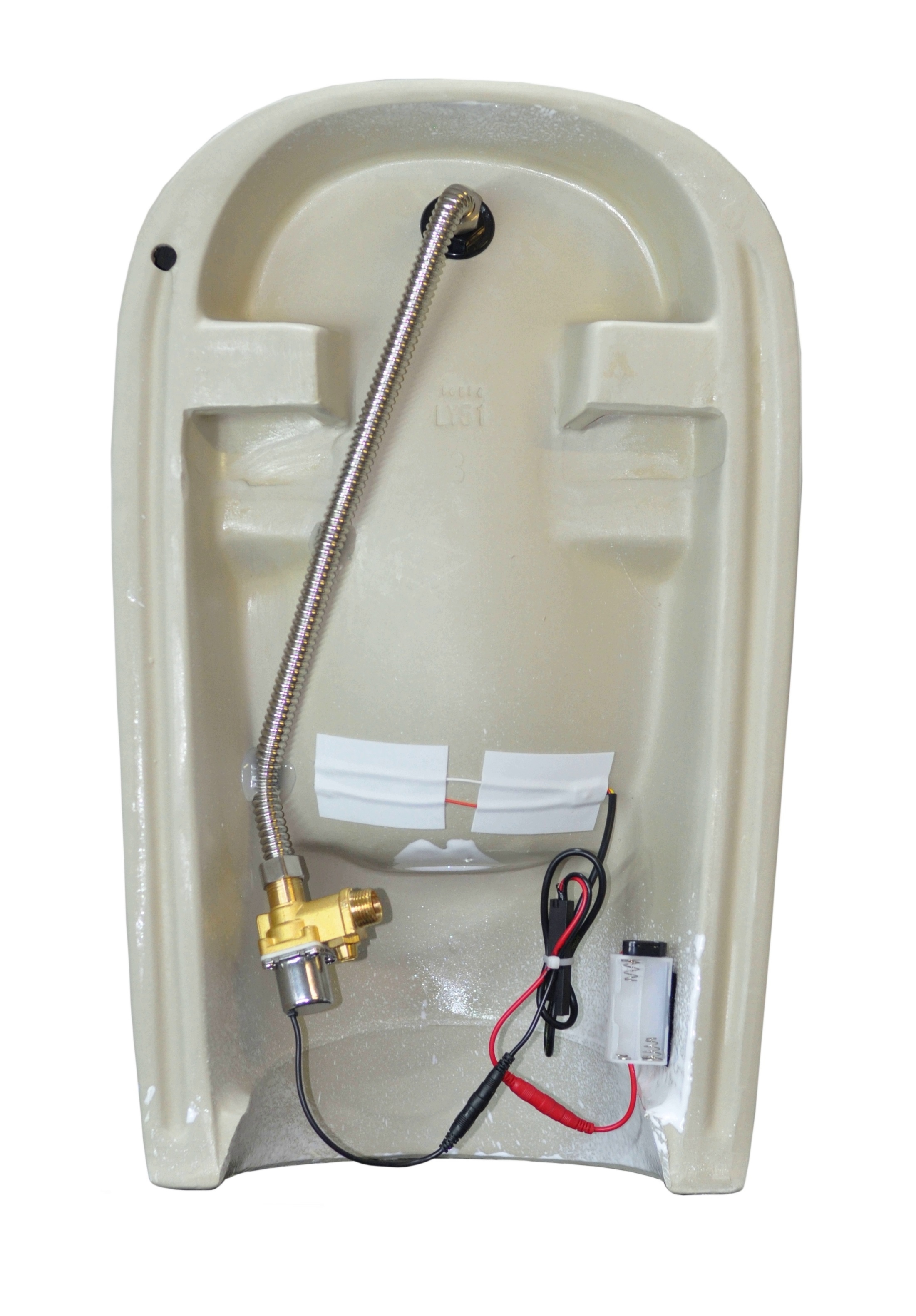

The brass solenoid valve incorporates a flow regulator and an EasyCare water filter. The trap and mounting kit are supplied for installation.
Flexible power options
Power the urinal with four AA batteries or a compatible USB source. Optional external power accessories are available separately, including the KG-A469 power supply controller.
Technical details
- Material: white sanitary ceramic
- Wall mounting with concealed water inlet
- Dimensions: 350 × 380 × 610 mm
- Net weight: 15 kg
- Water inlet: 1/2 inch
- Operating pressure: 0.3–0.7 MPa
- Operating temperature: +1 to +45 °C
- Protection rating: IP56
- Weesens sensor and solenoid valve included
Installation and maintenance should be performed by qualified professionals. Suitable water filtration is recommended.
-
Material - sanitary ceramics
-
Water supply - hidden
-
Control - sensor
-
Shape - round
-
Width - 380 mm
-
Installation - wall-hung
-
Outlet - universal
-
Net weight - 15 kg
-
Dimensions without packing - 350 x 380 x 610 mm
-
Cover - no
-
Drainage kit - yes
-
Built-in sensor
-
Power - 0.5 mW
-
Power - DC6B (4*AA batteries) optional AC220V, AC/DC12B
-
UPS function
-
Operating temperature range - +1°C to +45°C
-
Inlet pipe diameter - 1/2 inch (12mm)
-
Working pressure - 0.3 to 0.7 MPa
-
Protection class - IP56
- Kopfgescheit KG6028 urinal - 1 pc.
- Wall mounting kit - 1 pc.
- Packaging - 1 pc.
- Product information sheet - 1 pc.
- Siphon - 1 pc.
- Aromatic mat - 1 pc.
- USB power cable - 1 pc.
