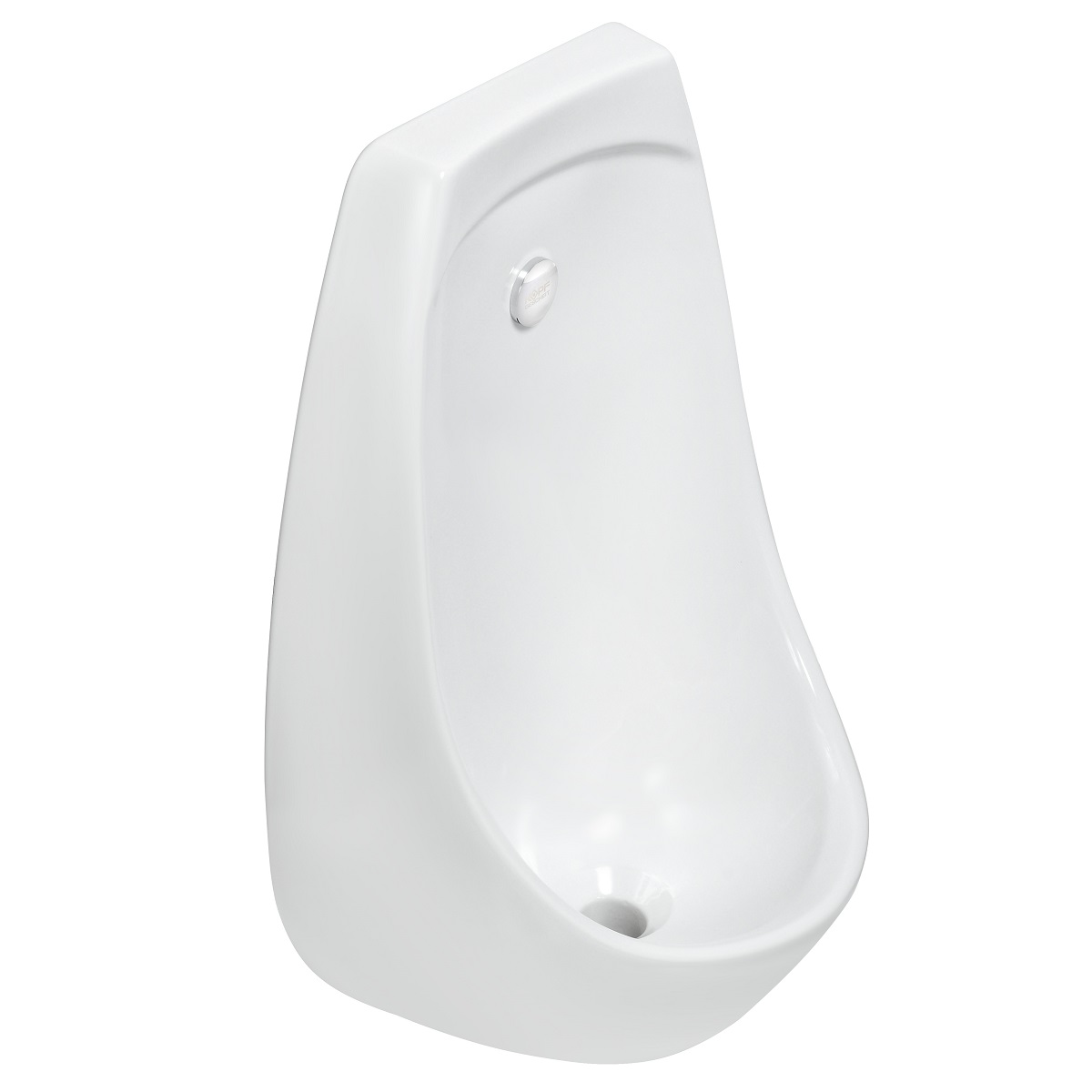

Cascade Automatic Wall-Mounted Urinal with Weesens Sensor
The Kopfgescheit Cascade is an automatic wall-mounted ceramic urinal for commercial washrooms. A concealed Weesens sensor controls the flushing cycle, with overflow protection, adjustable flow and an accessible EasyCare water filter.
Concealed sensor technology for busy washrooms
Cascade combines a white ceramic bowl with a Weesens sensor protected beneath the body. The sensor detects use without an exposed infrared window and calibrates automatically at first power-up.
Automatic flush control
A preliminary rinse and a main flush maintain the bowl after use. SmartDelay manages flushing during frequent use, and a maintenance rinse after 24 hours of inactivity helps replenish the trap seal. Built-in overflow protection supports reliable operation.
Power and servicing

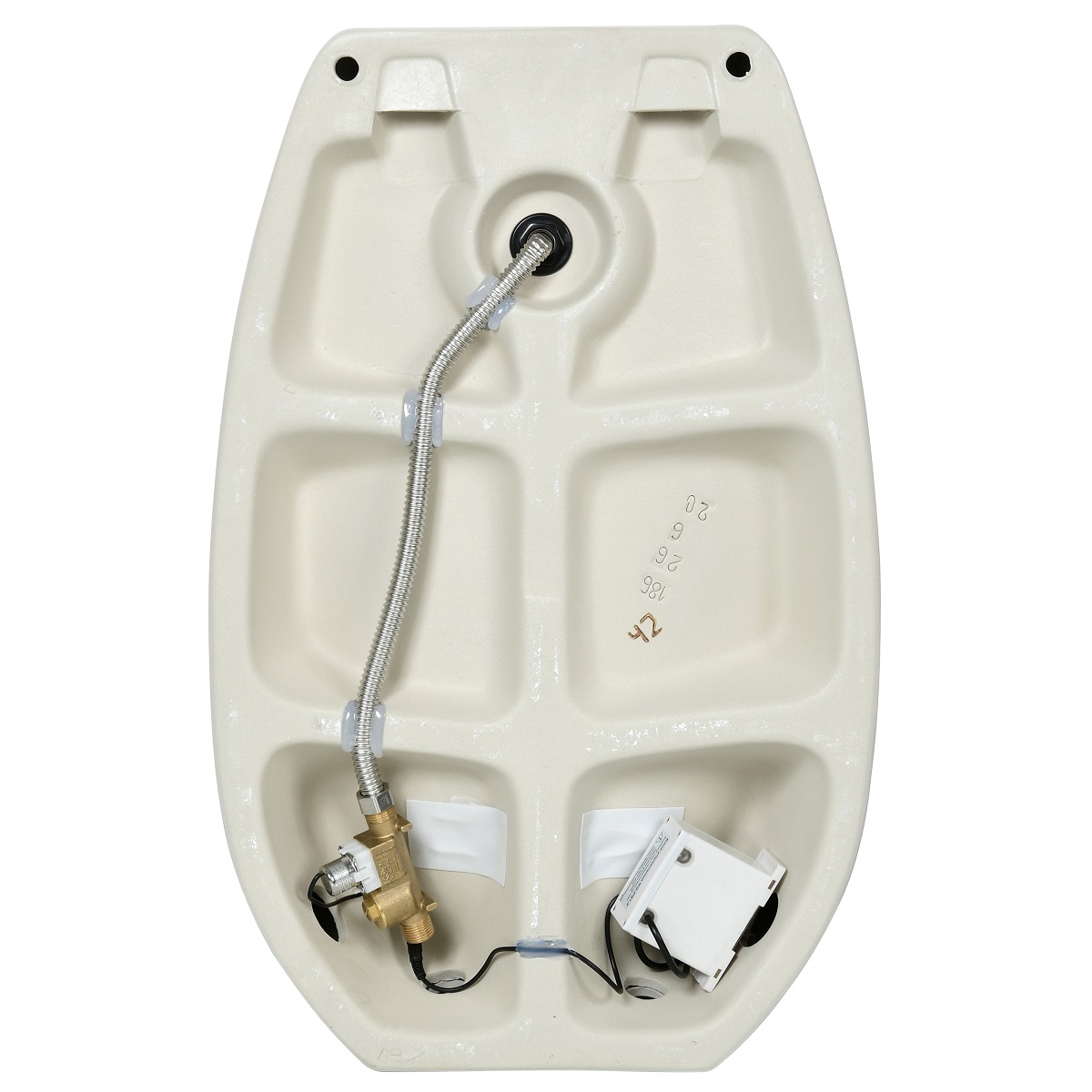

The system runs on four AA batteries, supplied separately, or a compatible external USB power source. Optional power accessories include the KG-A469 controller with battery backup. The brass solenoid valve includes a water filter and flow regulator; EasyCare access simplifies cleaning.
Technical specifications
- Dimensions (H × W × D): 670 × 430 × 315 mm
- Net weight: 15.7 kg
- Water connection: G1/2
- Operating pressure: 0.3–0.7 MPa
- Battery supply: 6 V DC, four AA batteries
- Operating temperature: +1 to +45 °C
- Weesens sensor and solenoid valve included

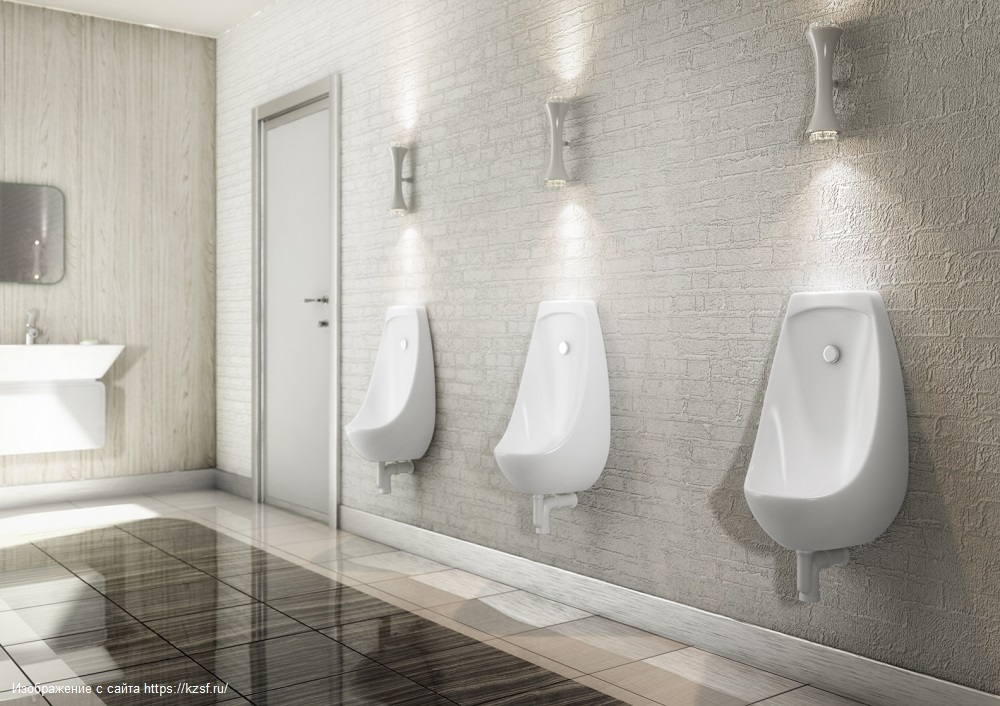

Designed for hotels, restaurants, schools, sports facilities and other commercial washrooms. Installation and servicing should be carried out by qualified professionals.
- Material: porcelain
- Weight: 17.6 kg
- Built-in sensor
- Power: 0.5 mW
- Power supply: standard AA batteries (4 pcs.)
- UPS function
- Operating temperature range: +1o C to +45o C
- Inlet pipe diameter: 1/2" (12mm)
- Working pressure: 0.3 to 0.7 MPa
- Protection class: IP 56
- Dimensions: 435*315*680mm
- "Cascade" urinal: 1 pc.
- Mounting kit: 1 pc.
- Package: 1 pc.
- Products data sheet: 1 pc..
