KG1433DC Concealed Sensor Shower Control
The KOPFGESCHEIT KG1433DC is a concealed, touch-free shower control with a stainless steel front panel. It operates a separate shower head and requires an externally premixed water supply.
Touch-free shower operation
Water starts when the user enters the sensor range and stops when they leave. A 10-minute safety shut-off limits continuous operation. The factory detection distance is 70 cm; settings can be adjusted with the optional KG000 RC remote control.
Installation and water supply

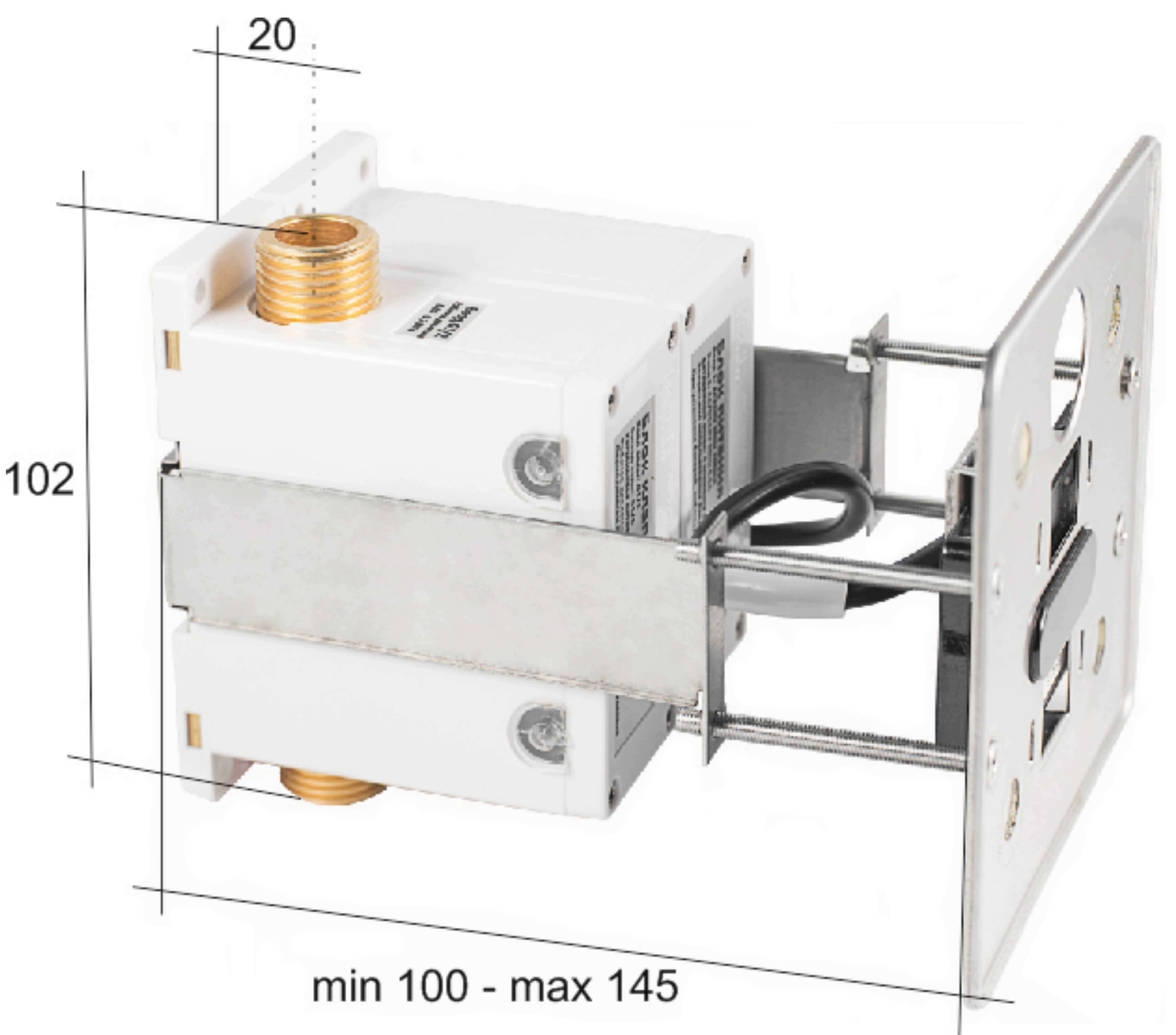

The concealed assembly has a SUS304 stainless steel front panel, a brass solenoid valve, an integrated filter and a flow regulator. Service access is through the front panel. The unit has no built-in mixing valve: connect it to premixed water from a suitable external thermostatic mixer.

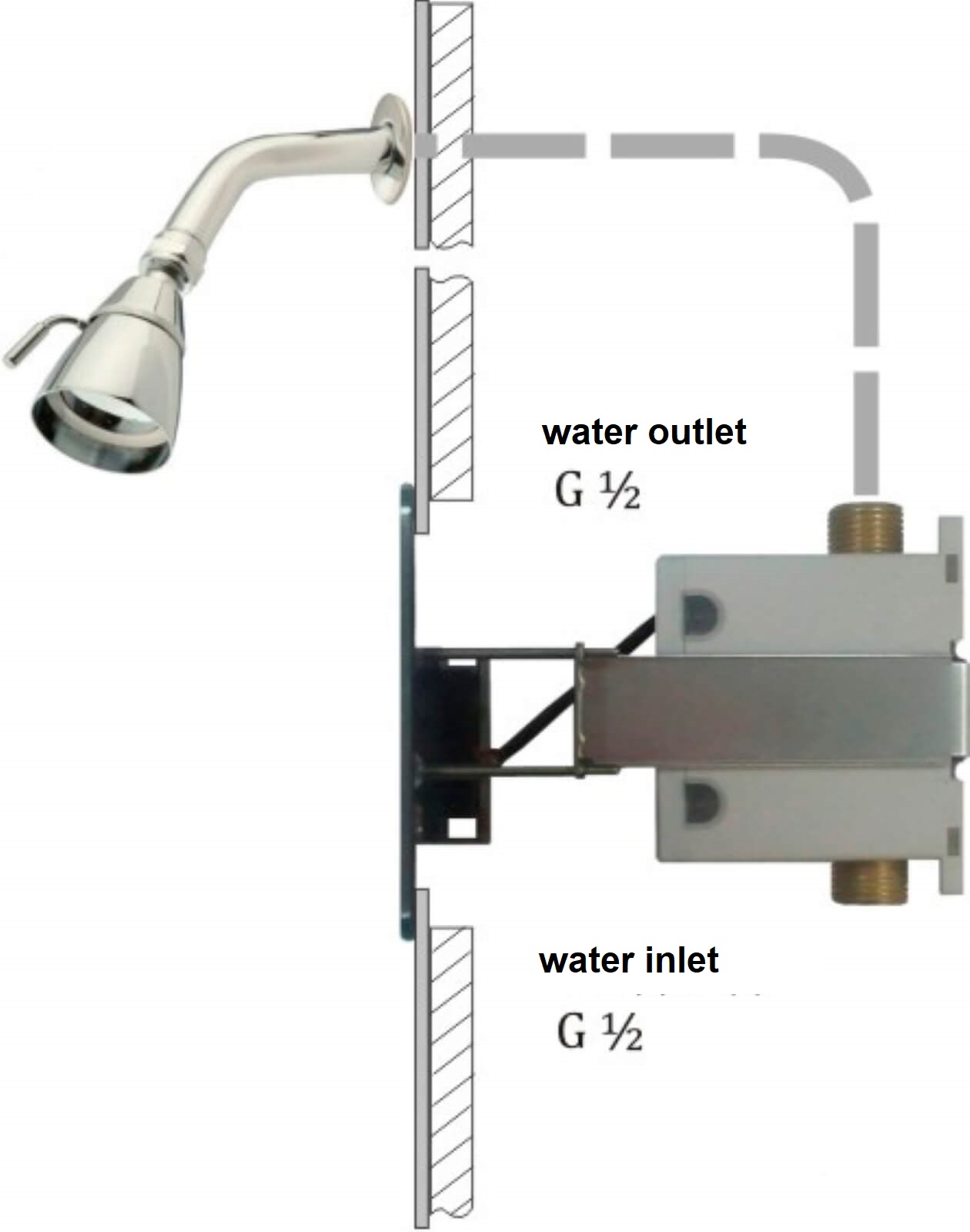

- Inlet and outlet: DN15 / G1/2
- Power: 6 V DC from four AA batteries
- Optional external power via KG-PSU2 with automatic battery backup
- Protection rating: IP65
- Low-battery indication
Compatible shower installation
Use with a separate shower head such as KG1431 DK01, DK02 or DK03. Suitable for sports facilities, hotels and shared shower areas. Avoid aggressive cleaning products on the sensor window.
- Purpose - for shower
- Installation - hidden
- Materials - brass, stainless steel
- Special features - built-in filter, water flow limiter
- Pipe diameter - 1/2" (DN15)
- Working pressure - 0.05 - 0.7 MPa
- Power - Universal, DC6V (4*AA batteries), optional AC220V, AC/DC12V
- Power consumption - 0.5W - 2W (DC)
- Operating temperature - 1 - 45 °C
- Sensor response area - 70 cm (factory setting), can be set via remote control
- Response delay - less than 0.5 sec

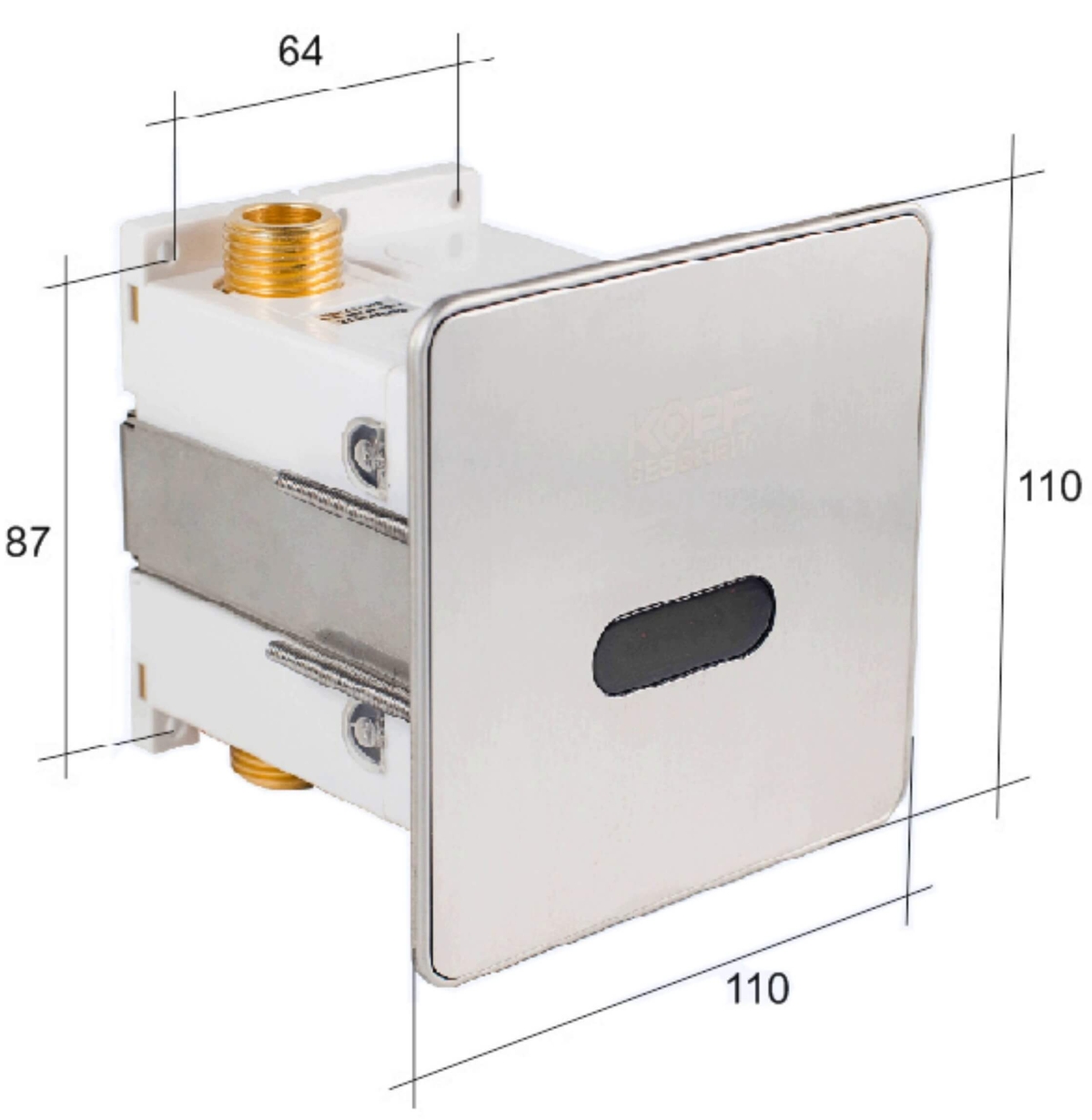

- Surface plate dimensions - 110 mm * 110 mm
- Protection class - IP65
- Weight - 1 kg.
- Decorative plate - 1 pc.
- Mounting plate with sensor assembly - 1 pc.
- Valve unit and power supply unit assembly - 1 pc.
- Mounting U-bars - 1 pc.
- Screw for fixing the mounting plate - 4 pcs.
- Screw complete with dowel for fixing the valve block and sensor unit - 4 pcs.
- Suction cup for removing the decorative plate - 1 pc.
- Product data sheet with warranty card - 1 pc.
