Kopfgescheit KG535 Thermal mixing valve and bellows connection kit
Kopfgescheit KG535 Thermal mixing valve and bellows connection kit
Kopfgescheit KG535 Thermal mixing valve and bellows connection kit
Kopfgescheit KG535 Thermal mixing valve and bellows connection kit
Sku KG535 Kit

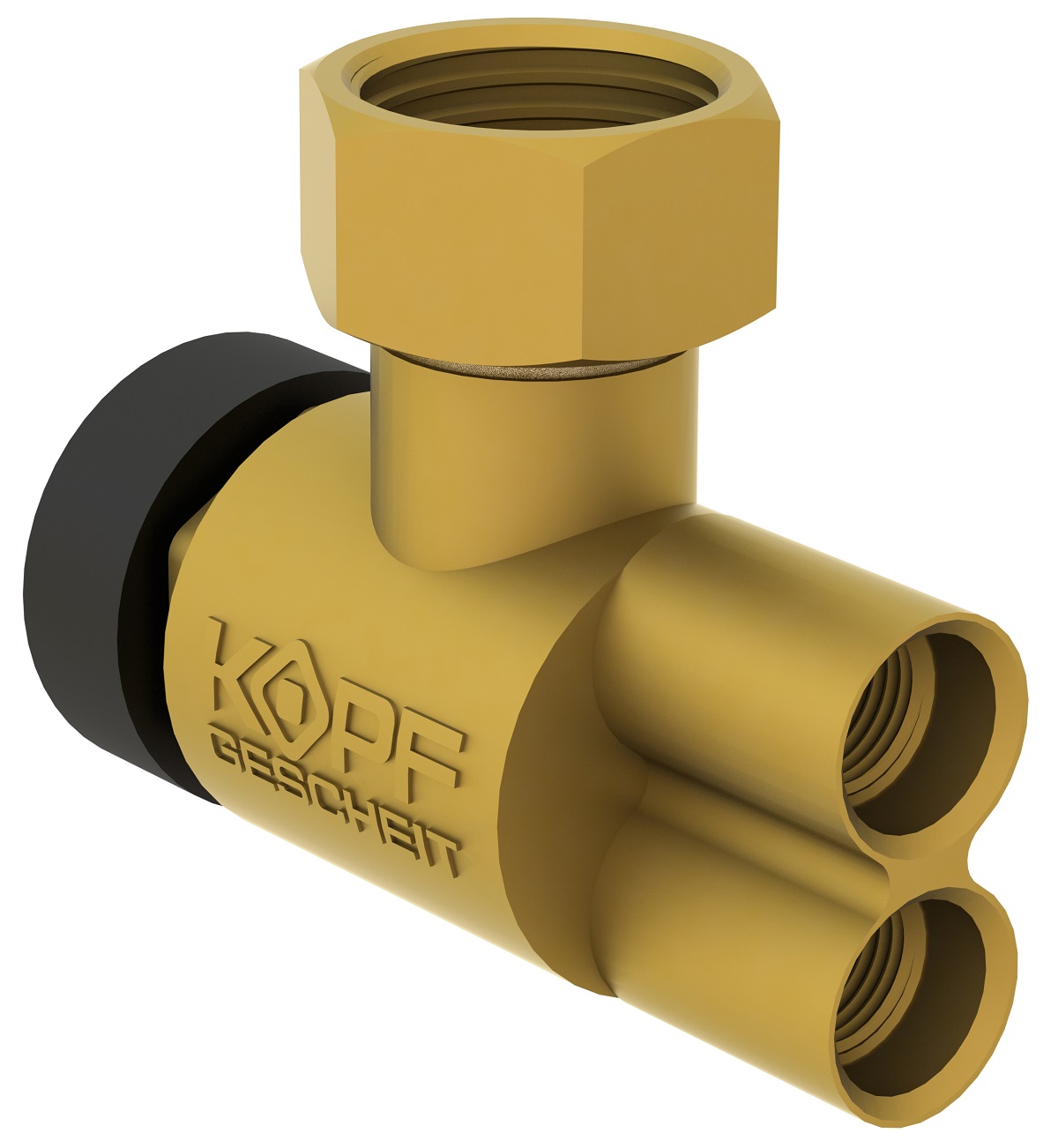

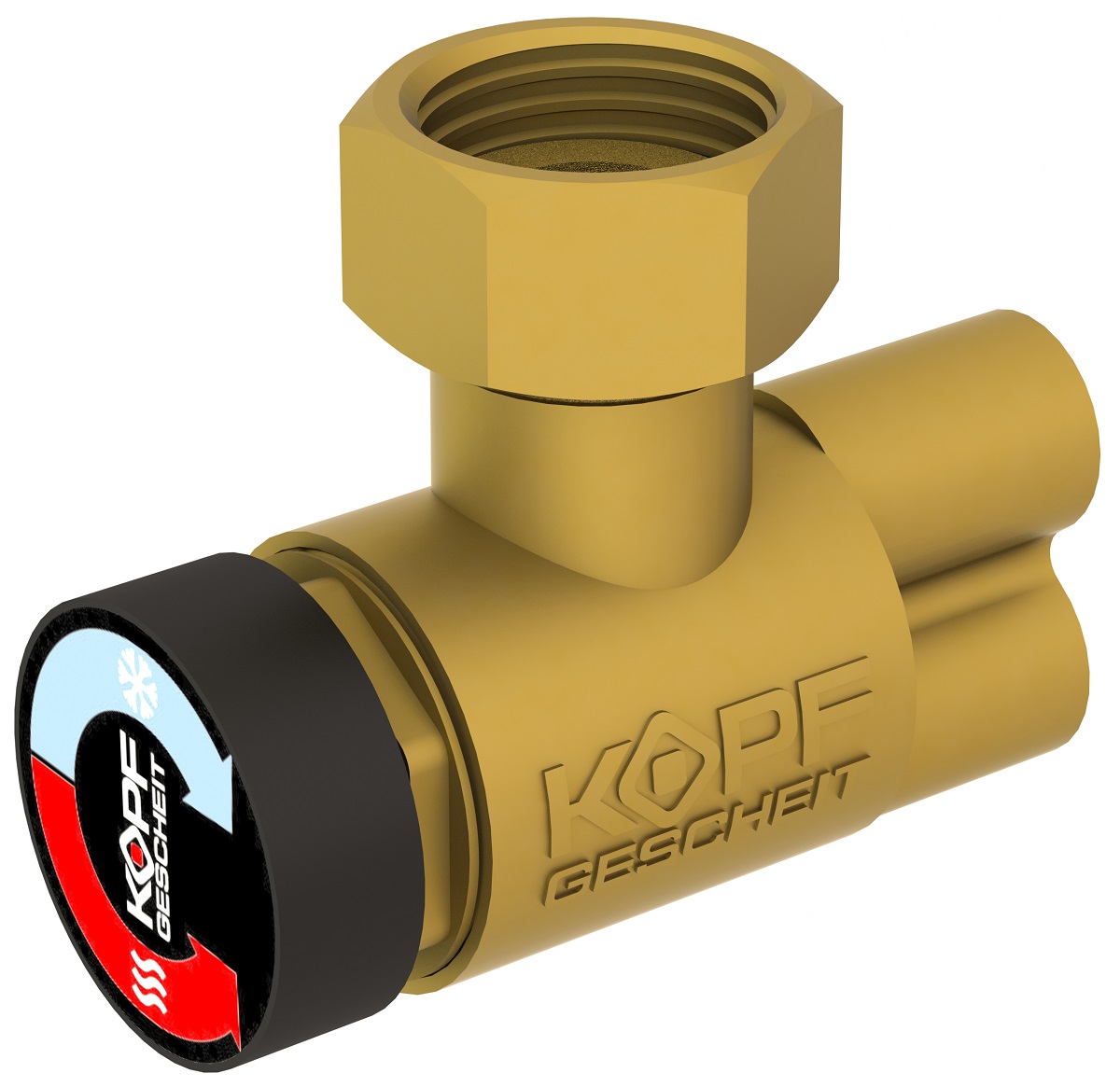

Kopfgescheit KG535 Thermal mixing valve and bellows connection kit

  • Color: golden

    • Advantages of the product

    • Thermal mixing valve made of brass LC40C
    • Suitable for any ½" diameter pipe
    • Replaceable ceramic cartridge
    • Fittings made of stainless steel SUS304
    • Service life of the inlet pipe - from 10 years and longer

    Kopfgescheit KG535 Thermal mixing valve (faucet) for warm water preparation with bellows connection for 1/2" M10 40cm Kopfgescheit KG-A374x2 faucet.

    Designed for all pipe diameters ½". Equipped with non-return valves for hot and cold water, and has a small size. The mixing adjustment is made with a replaceable ceramic cartridge.

    Suitable for concealed installation when there is no need to adjust the water temperature regularly, and water distribution can be either open (preferably) or closed.

    • Purpose - thermostatic valve
    • Max. operating temperature - 96°C
    • Max. operating pressure - 10 atm
    • Pipe connection standard - 1/2" x M10
    • Inlet pressure difference - max. 3 bar
    • Material - brass LC-40C (valve), stainless steel SUS304 (inlet)
    • Dimensions in package (LxWxH) - 250 x 80 x 30 mm
    • Package weight - 270 grams
    • Warranty - 5 years
    • Thermal mixing valve - 1 pc.
    • Flexible connection - 2 pcs.
    • Wrenches - 2 pcs.
    • Gasket - 3 pcs.
