Sku KG-A319

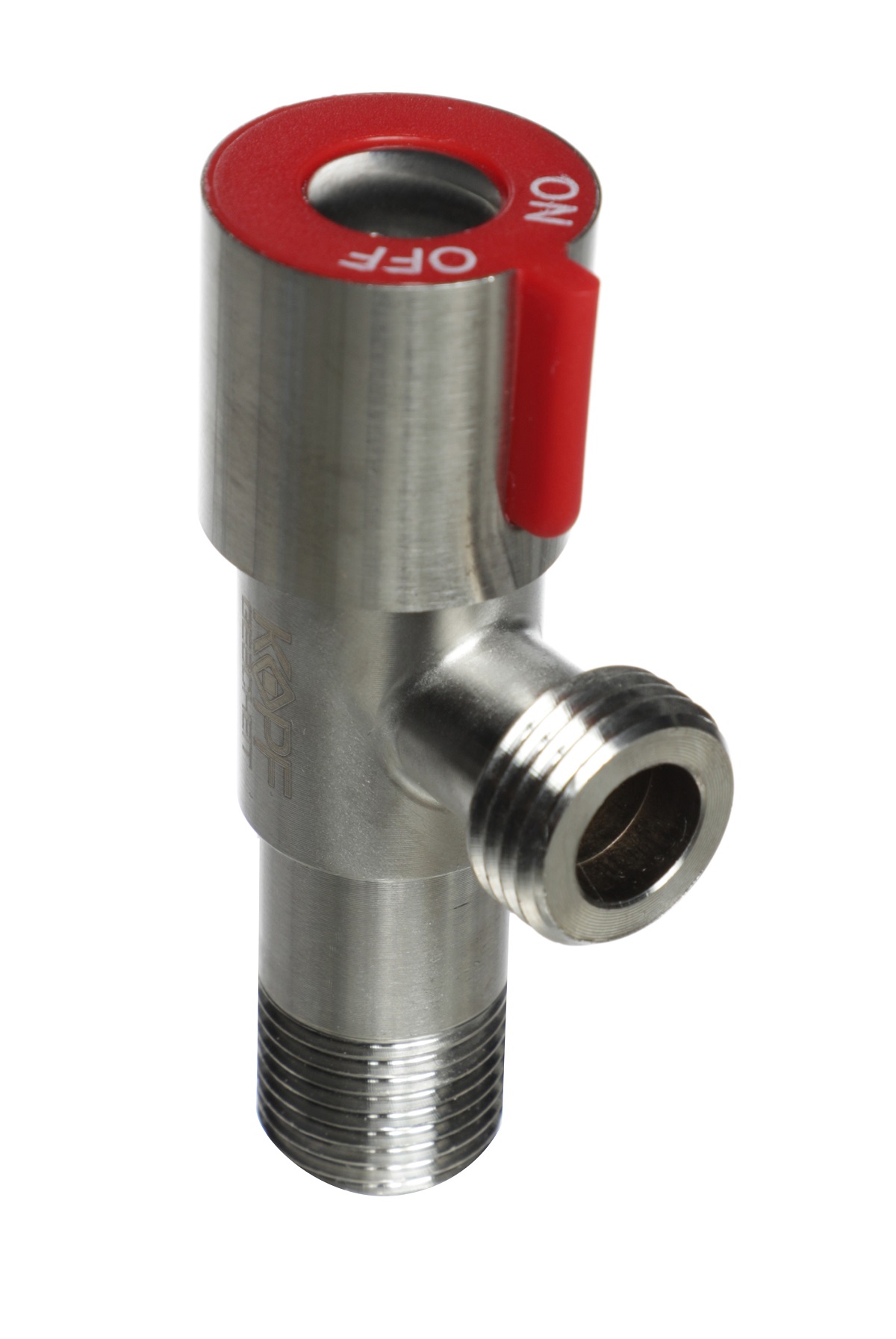

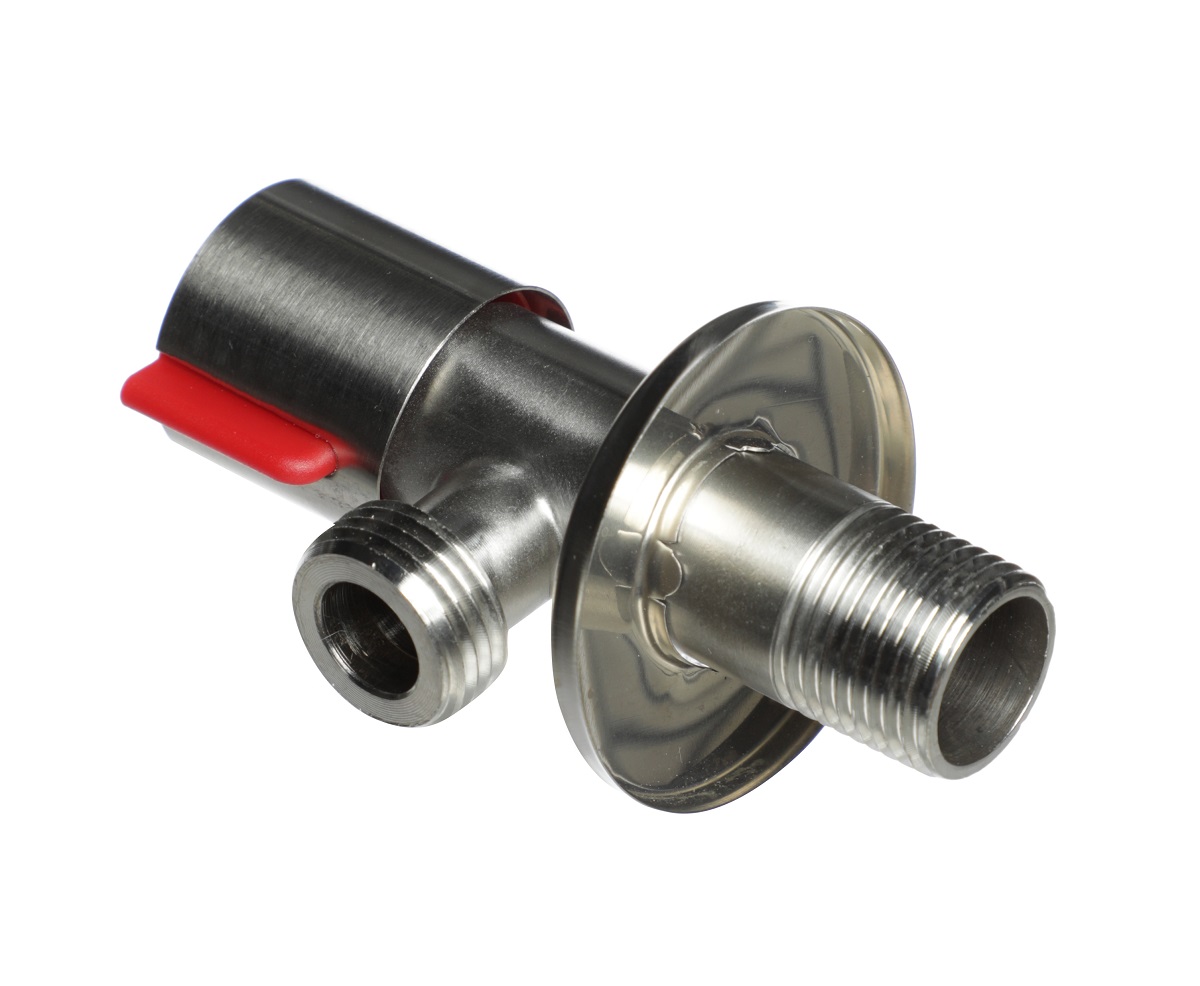

KG-A319 Stainless Steel Hot Water Angle Valve
9€
The KOPFGESCHEIT KG-A319 hot water angle valve connects taps and other water fittings to the supply. A SUS304 stainless steel body and ceramic shut-off mechanism provide local water isolation.
Hot water connection valve
The compact angle valve allows the connected fitting to be isolated for servicing. Colour identification makes it easy to distinguish the hot water supply.
Technical details
- Body: SUS304 stainless steel
- Shut-off mechanism: ceramic
- Inlet: G1/2 male thread
- Outlet: G1/2 male thread
- Maximum pressure: 10 bar
- Maximum operating temperature: 100 °C
- Dimensions: 90 × 45 × 30 mm
- Weight: 150 g
- Type - valve
- Material - stainless steel SUS304
- Thread location - external
- Inlet thread - 1/2"
- Outlet thread - 1/2"
- Max. pressure - bar 10
- Max. operating temperature - °C 100
- Dimensions - 90x45x30 mm
- Item weight - 150 g
- Warranty - 1 year
- Angled valve - 1 pc.
- Socket - 1 pc.
- Packing - 1 pc.
