Sku KG-A318

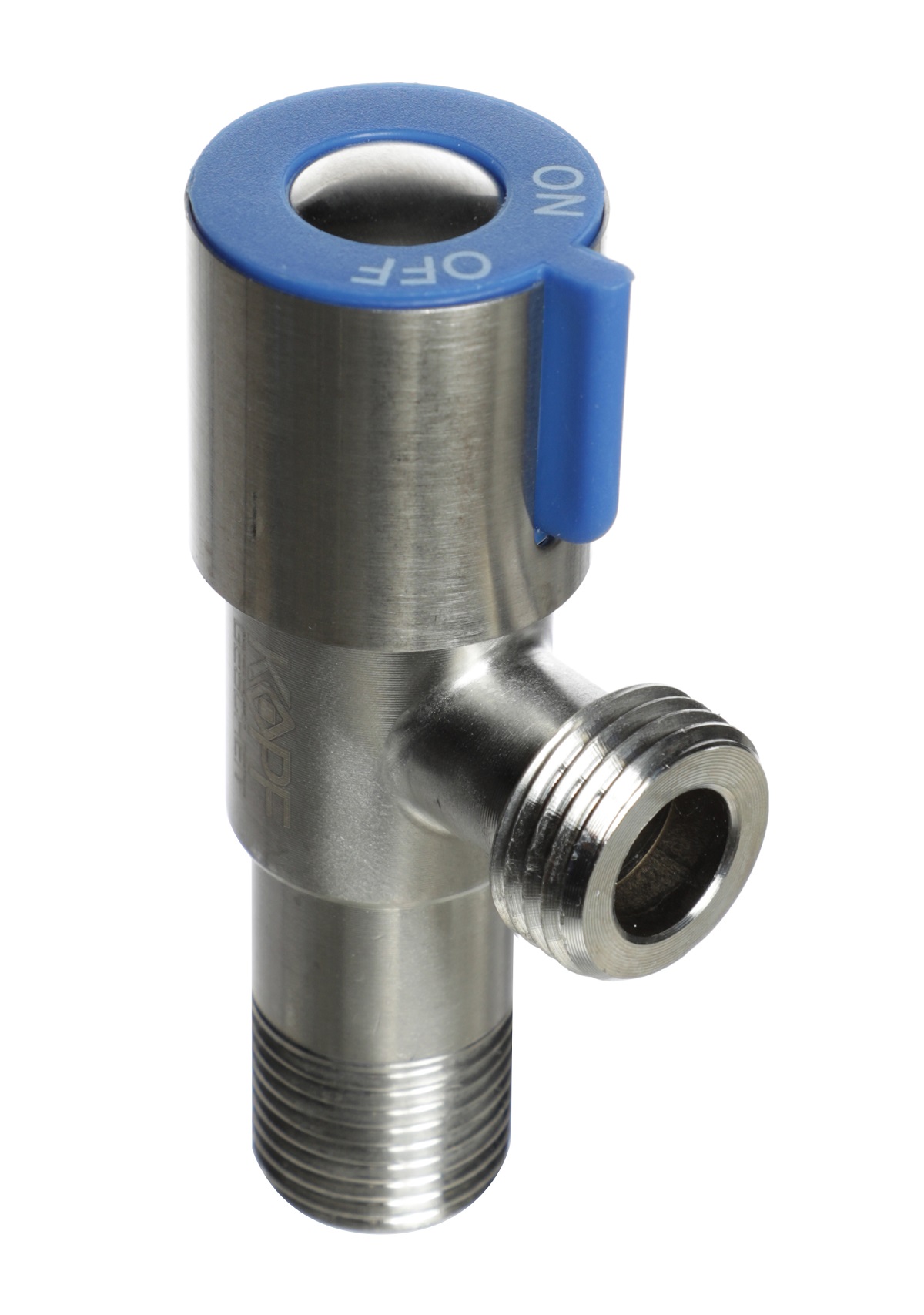

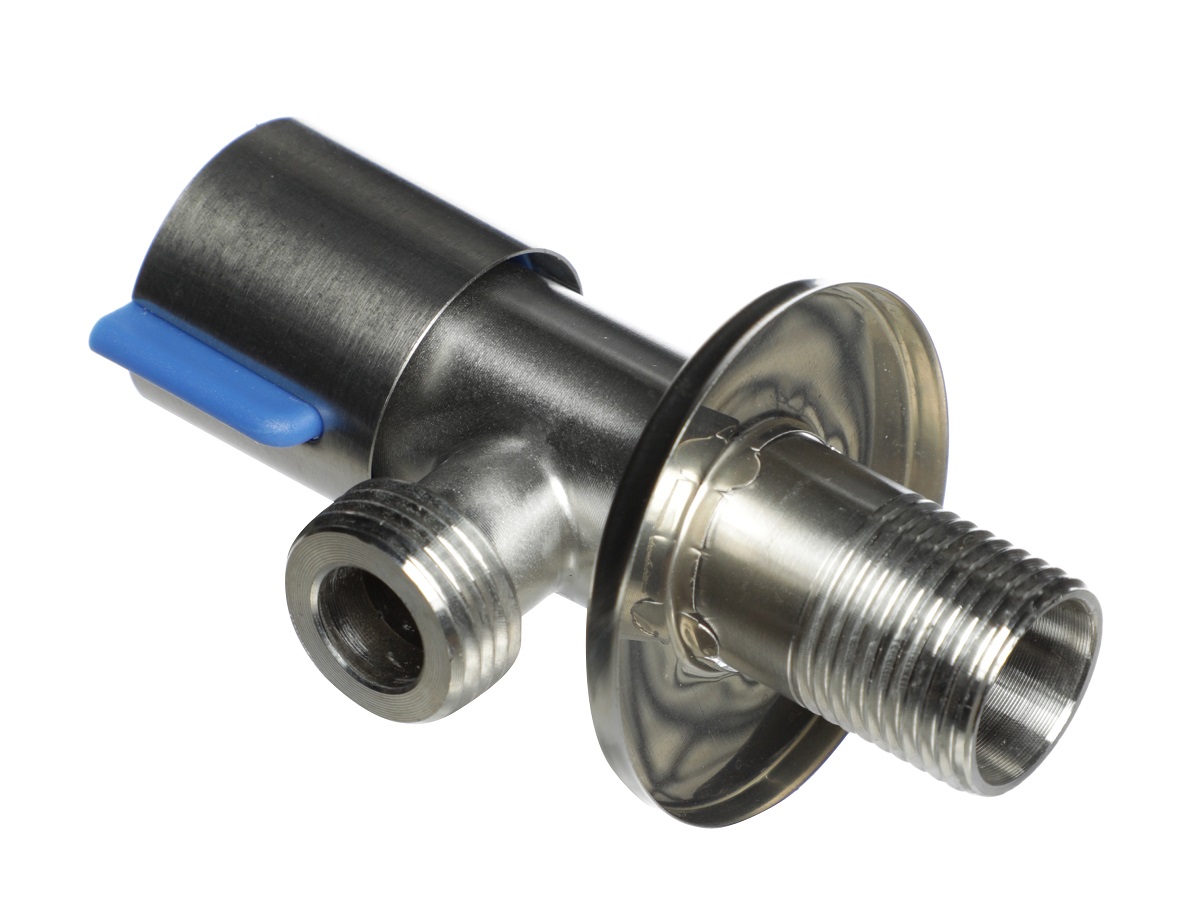

KG-A318 Stainless Steel Cold Water Angle Valve
9€
The KOPFGESCHEIT KG-A318 cold water angle valve connects taps and other water fittings to the supply. Its SUS304 stainless steel body contains a ceramic shut-off mechanism for local water isolation.
Cold water connection valve
The compact angle valve allows the connected fitting to be isolated for servicing. Colour identification helps distinguish the cold water supply.
Technical details
- Body: SUS304 stainless steel
- Shut-off mechanism: ceramic
- Inlet and outlet: G1/2 male threads
- Maximum pressure: 10 bar
- Maximum operating temperature: 100 °C
- Dimensions: 90 × 45 × 30 mm
- Weight: 150 g
- Type - valve
- Material - stainless steel SUS304
- Thread location - external
- Inlet thread - 1/2"
- Outlet thread - 1/2"
- Max. pressure - bar 10
- Max. operating temperature °C 100
- Article No. - KG-A318
- Dimensions - 90x45x30 mm
- Item weight - 150 g
- Warranty - 1 year
- Angled valve - 1 pc.
- Socket outlet - 1 pc.
- Packing - 1 pc.
